Weatherhead® 12Z-672 12Z-672

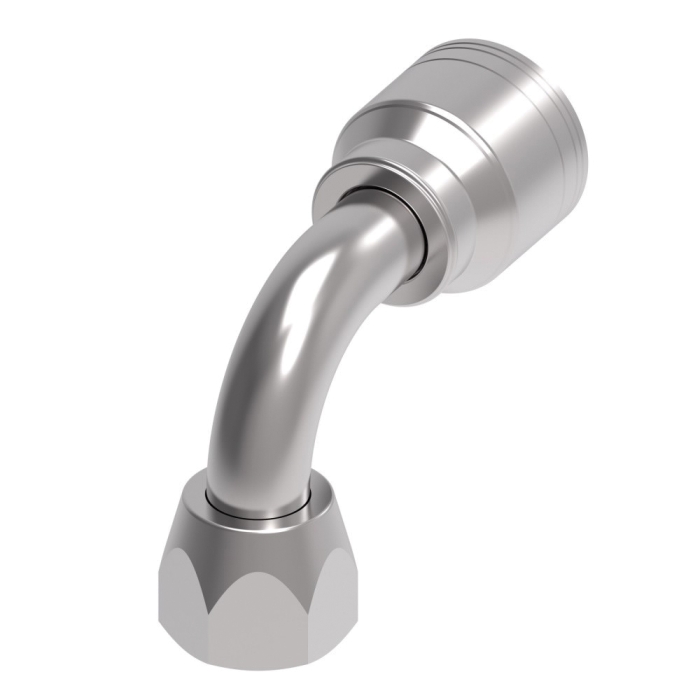

Weatherhead® Z Series Dura-Kote Carbon Steel Female 37 deg JIC Swivel Crimp Hose 90 deg Elbow

Weatherhead® Z Series Crimp Hose 90 deg Elbow, Hose X 37 deg JIC Swivel, Dura-Kote, Carbon Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Weatherhead® Crimp Hose 90 deg Elbow, Series: Z, Connection Type 1: Hose, Connection Size 1: 3/4 in, Hose Dash Size: 12, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/4 in, Nominal Size: 3/4 in, Thread Size 2: 1-1/16-12, Hex Size: 1-1/4 in, Cut-Off Factor: 2.17 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 and -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 3.36 in L x 1.56 in W x 1.80 in H, Dimension Standards: SAE J1176

    Connection Size 1      :      3/4 in
    Connection Size 2      :      3/4 in
    Connection Type      :      Hose~JIC Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      37 deg JIC Swivel
    Cut-Off Factor      :      2.17 in
    Dimension Standards      :      SAE J1176
    Dimensions      :      3.36 in L x 1.56 in W x 1.80 in H
    Finish      :      Dura-Kote
    Fitting Type      :      90 deg Elbow
    For Use With      :      H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 and -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, and EC118 Series Hoses
    Gender 2      :      Female
    Hex Size      :      1-1/4 in
    Hose Dash Size      :      12
    Industry Category      :      Marine Hydraulic Hose Ends
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Nominal Size      :      3/4 in
    Series      :      Z
    Shape      :      90 deg Elbow
    Thread Size 2      :      1-1/16-12
    • Dura-Kote™ plating for superior corrosion resistance
    • Innovative design to deliver performance and maximum uptime
    • System engineered to extend hose assembly life

    Applications: General-purpose low and medium-pressure hydraulics

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_04Z-10E_CAT.pdf
