Winner® EC215-10LRL EC215-10LRL

Winner® EC215-10LRL

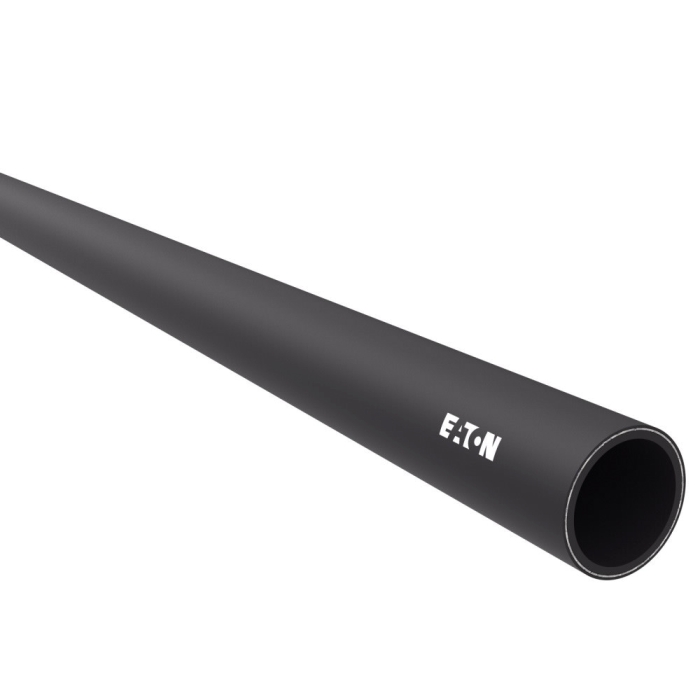

Winner® EC215 Black Synthetic Rubber 2-Wire Braided Hose, 0.62 in, 1 ftL, 3650 psi

pin-int

Winner® 2-Wire Braided Hose, Series: EC215, Nominal Size: 0.62 in, Dash Size: 10, 0.97 in OD, 0.62 in ID, 1 ft Length, 3650 psi, SAE Rating: SAE 100R16, Material Construction: Synthetic Rubber, Synthetic Rubber Cover, Construction: 2-Ply Braid Wire, Black, 3.94 in Bend Radius, Resistance Properties: Premium Abrasion, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      3.94 in
Color      :      Black
Construction      :      2-Ply Braid Wire
Cover Material      :      Synthetic Rubber
Dash Size      :      10
Industry Category      :      Marine Hydraulic Hose
Inside Diameter      :      0.62 in
Length      :      400 ft
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      5/8 in
Outside Diameter      :      0.97 in
Pressure Rating      :      3650 psi
Product Type      :      Braided Hose
Resistance Properties      :      Premium Abrasion
SAE Rating      :      SAE 100R16
Series      :      EC215
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F

Applications: For hydraulic system service with petroleum and water-based fluids, general industrial service

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_H430R12-150_CAT.pdf
