Winner® EC215-20L EC215-20L

Winner® EC215-20L

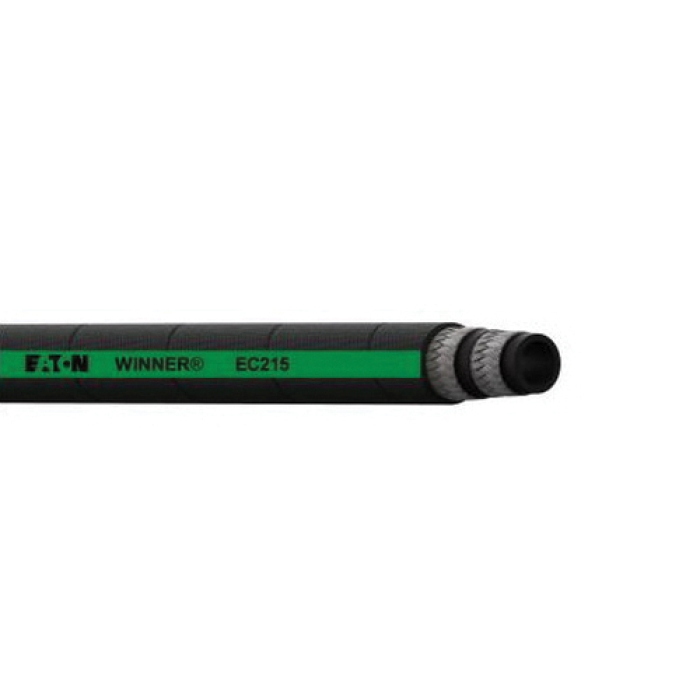

Winner® EC215 Black Synthetic Rubber 2-Wire Braided Hose, 1-1/4 in, 1 ftL, 1800 psi

pin-int

Winner® 2-Wire Braided Hose, Series: EC215, Nominal Size: 1-1/4 in, Dash Size: 20, 1.72 in OD, 1-1/4 in ID, 1 ft Length, 1800 psi, SAE Rating: SAE 100R16, Material Construction: Synthetic Rubber, Synthetic Rubber Cover, Construction: 2-Ply Braid Wire, Black, 9.84 in Bend Radius, Resistance Properties: Premium Abrasion, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      9.84 in
Color      :      Black
Construction      :      2-Ply Braid Wire
Cover Material      :      Synthetic Rubber
Dash Size      :      20
Industry Category      :      Marine Hydraulic Hose
Inside Diameter      :      1-1/4 in
Length      :      600 ft
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1-1/4 in
Outside Diameter      :      1.72 in
Pressure Rating      :      1800 psi
Product Type      :      Braided Hose
Resistance Properties      :      Premium Abrasion
SAE Rating      :      SAE 100R16
Series      :      EC215
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F

Applications: For hydraulic system service with petroleum and water-based fluids, general industrial service

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_H430R12-150_CAT.pdf
