ZSI-Foster BL38FS

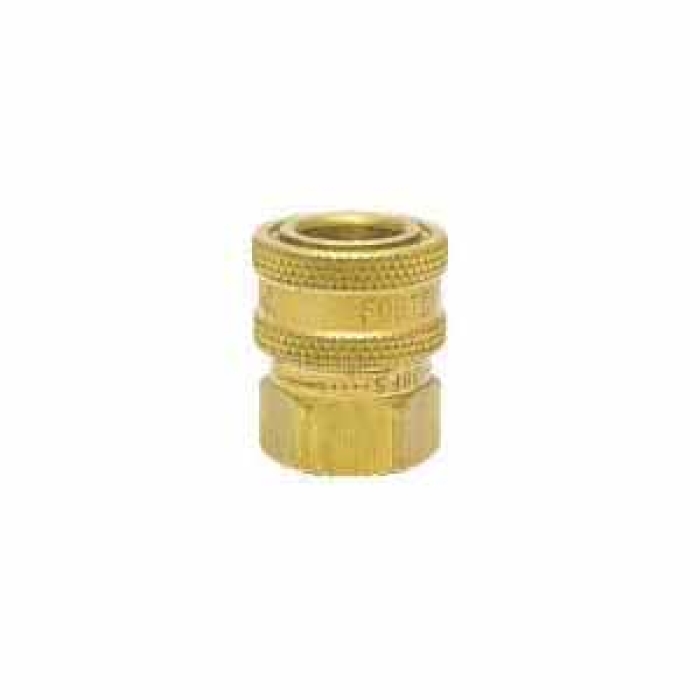

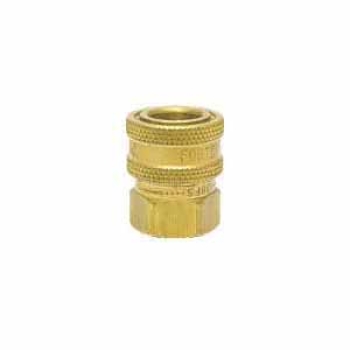

ZSI-Foster FST Brass Straight-Thru Ball Lock Coupling, 3/8 in Female Quick Disconnect x 3/8 in FNPT

  • Manufacturer: ZSI-Foster
  • Brand: ZSI-Foster
  • ARGPN: FOS BL38FS
  • MPN: BL38FS
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for ZSI-Foster factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

ZSI-Foster Straight-Thru Ball Lock Coupling, Series: FST, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/8 in, 2700 psi, Material Construction: Brass

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPT
Gender 1      :      Female
Gender 2      :      Female
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      2700 psi
Series      :      FST
Shape      :      Coupling
  • FST straight-thru, no valve in either socket or plug
  • Standard industrial interchange design, most widely used in industry, within each Series, only sockets and plugs of the same size will couple together
  • Socket sleeve must be manually retracted to connect and disconnect
  • Ball lock locks socket against accidental disconnect, to connect, align ball with slot, after connection, rotate sleeve to lock, to disconnect, realign ball with slot and retract sleeve
  • Buna-N standard seal
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/ZSI-Foster_2402_CAT.pdf
