Aeroquip® by Danfoss FC234-12 FC234-12

Aeroquip® by Danfoss FC234-12

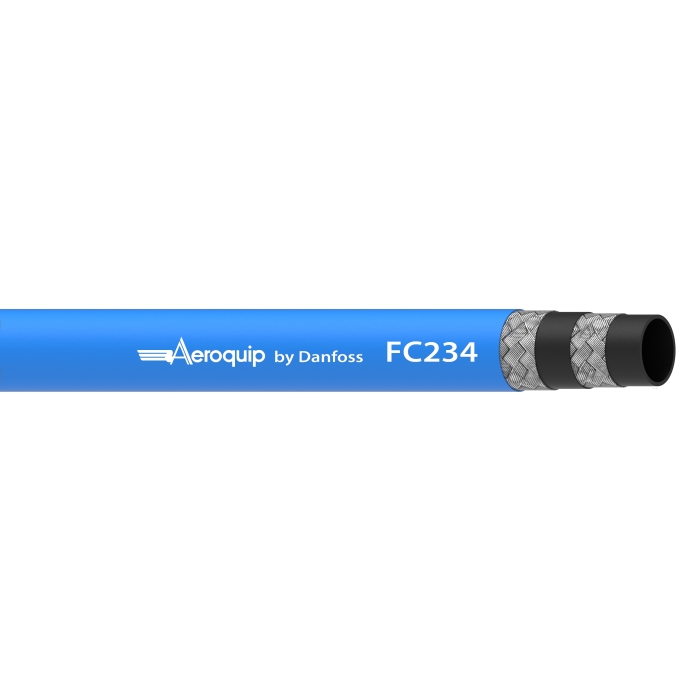

Aeroquip® by Danfoss FC234 Blue AQP Elastomer SAE R5 Braided Insulation High-Temperature Hydraulic Hose, 0.63 in, 12 in L, 750 psi

pin-int

Aeroquip® by Danfoss SAE R5 Braided Insulation High-Temperature Hydraulic Hose, Series: FC234, Nominal Size: 0.63 in, Dash Size: 12, 1.08 in OD, 0.63 in ID, 0.45 in Thick Wall, 12 in Length, 750 psi, Material Construction: AQP Elastomer, AQP Elastomer Cover, Construction: Brass-Plated Steel Wire, Blue, 2-1/4 in Bend Radius, Resistance Properties: Abrasion, Fire, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      2-1/4 in
Color      :      Blue
Construction      :      Brass-Plated Steel Wire
Cover Material      :      AQP Elastomer
Dash Size      :      12
Inside Diameter      :      0.63 in
Material      :      Elastomer
Material Construction      :      AQP Elastomer
Nominal Size      :      0.63 in
Outside Diameter      :      1.08 in
Pressure Rating      :      750 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Fire
Series      :      FC234
Temperature High      :      302 deg F
Temperature Low      :      -40 deg F
  • Use with biodiesel not to exceed 212 deg F with B2 to B20
  • Braided refractory insulation and blue AQP elastomer cover

Applications: Diesel fuel, gasoline, hot lube oil and water

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/EATON_2580-32_CAT.pdf
