Aeroquip® by Danfoss FC300-24 FC300-24

Aeroquip® by Danfoss FC300-24

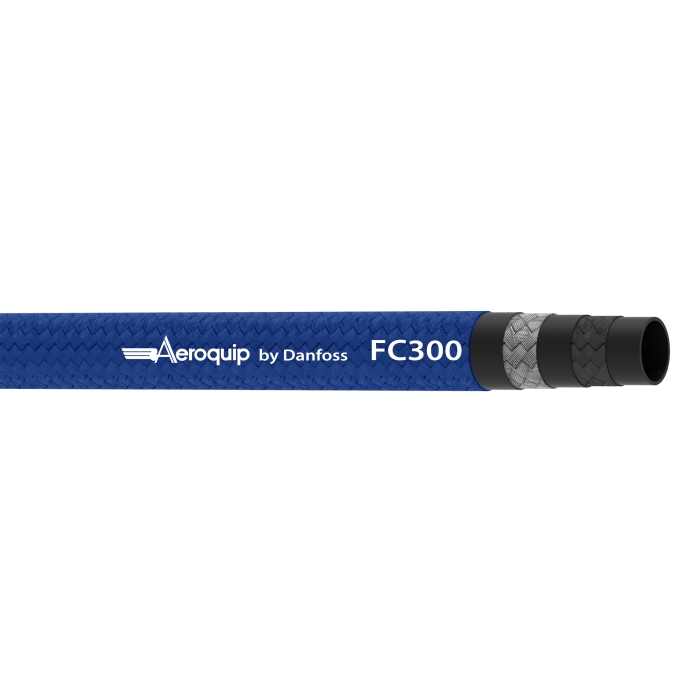

Aeroquip® by Danfoss FC300 Blue AQP Elastomer Engine and Fuel Hose and Tubing, 1-3/4 in, 12 in L, 2000 psi

pin-int

Aeroquip® by Danfoss Engine and Fuel Hose and Tubing, Series: FC300, Nominal Size: 1-3/4 in, Dash Size: 24, 1-3/4 in OD, 1-3/4 in ID, 0.37 in Thick Wall, 12 in Length, 500 psi, SAE Rating: SAE J1402, Material Construction: AQP Elastomer, Textile Braid Cover, Construction: Polyester Inner Braid, Single Wire Braid, Blue, 10-1/2 in Bend Radius, Resistance Properties: Abrasion, -55 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      10-1/2 in
Color      :      Blue
Construction      :      Polyester Inner Braid, Single Wire Braid
Cover Material      :      Textile Braid
Dash Size      :      24
Inside Diameter      :      1-3/4 in
Length      :      12 in
Material      :      Elastomer
Material Construction      :      AQP Elastomer
Nominal Size      :      1-3/4 in
Outside Diameter      :      1-3/4 in
Pressure Rating      :      500 psi
Product Type      :      Engine and Fuel Hose and Tubing
Resistance Properties      :      Abrasion
SAE Rating      :      SAE J1402
Series      :      FC300
Temperature High      :      212 deg F
Temperature Low      :      -55 deg F
Wall Thickness      :      0.37 in
  • Blue polyester braid cover

Applications: For hydraulics handling petroleum base fluids and air, gasoline, fuel and lubricating oils, fire-resistant hydraulic fluids and other industrial fluids

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/EATON_2580-32_CAT.pdf
