Aeroquip® by Danfoss FC234-05 FC234-05

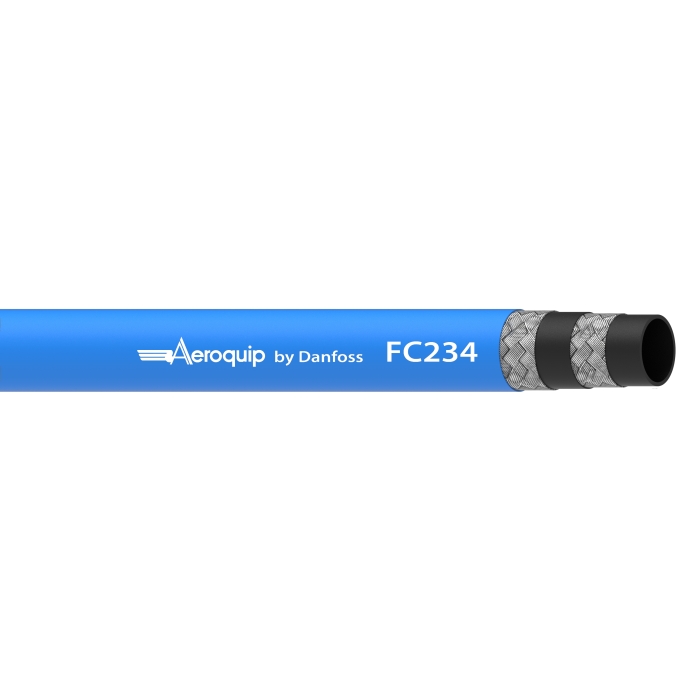

Aeroquip® by Danfoss FC234 Blue AQP Elastomer SAE R5 Braided Insulation High-Temperature Hydraulic Hose

Aeroquip® by Danfoss FC234 Blue AQP Elastomer SAE R5 Braided Insulation High-Temperature Hydraulic Hose

pin-int

Aeroquip® by Danfoss SAE R5 Braided Insulation High-Temperature Hydraulic Hose, Series: FC234, Nominal Size: 1/4 in, Dash Size: 05, 0.58 in OD, 1/4 in ID, 0.33 in Thick Wall, 12 in Length, 1500 psi, Material Construction: AQP Elastomer, AQP Elastomer Cover, Construction: Brass-Plated Steel Wire, Blue, 1 in Bend Radius, Resistance Properties: Abrasion, Fire, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      1 in
Color      :      Blue
Construction      :      Brass-Plated Steel Wire
Cover Material      :      AQP Elastomer
Dash Size      :      05
Inside Diameter      :      1/4 in
Length      :      12 in
Material      :      Elastomer
Material Construction      :      AQP Elastomer
Nominal Size      :      1/4 in
Outside Diameter      :      0.58 in
Pressure Rating      :      1500 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Abrasion, Fire
Series      :      FC234
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.33 in
  • Use with biodiesel not to exceed 212 deg F with B2 to B20
  • Braided refractory insulation and blue AQP elastomer cover

Applications: Diesel fuel, gasoline, hot lube oil and water

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_FC234-05_CAT.pdf
