Aeroquip® by Danfoss FC500-20 FC500-20

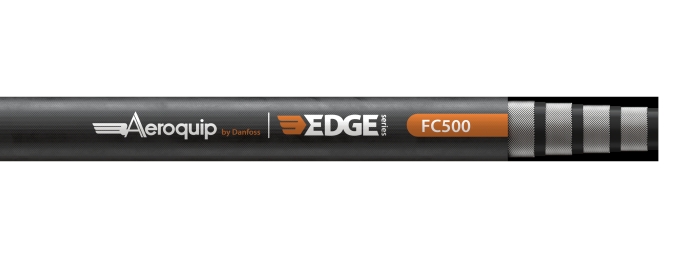

Aeroquip® by Danfoss FC500 Synthetic Rubber Spiral Hose

Aeroquip® by Danfoss FC500 Spiral Hose, Black, Synthetic Rubber, 5100 psi, SAE 100R13

pin-int

Aeroquip® by Danfoss by Danfoss 2-Wire Braided Hose, Series: GH120 Series, Hose Type: Braided Hose, 10 Dash Size, 0.62 in Inside Dia, 1 in Outside Dia, 250 ft Length, Rubber Cover, 2-Ply Braid Reinforcement, Black Hose Color, 4 in Bend Radius, 4000 psi, Abrasion Resistance Properties, 212 deg F Temperature High, -70 deg F Temperature Low

Attribute Type Configurator      :      Parent
Bend Radius      :      8-1/4 in
Color      :      Black
Cover Material      :      Rubber
Dash Size      :      20
Hose Type      :      Braided Hose
Inside Diameter      :      1-1/4 in
Length      :      1 ft
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1-1/4 in
Outside Diameter      :      1.85 in
Pressure Rating      :      5100 psi
Product Type      :      Spiral Hose
Reinforcement      :      2-Ply Braid
Reinforcement      :      Black
Resistance Properties      :      Abrasion
SAE Rating      :      SAE 100R13
Series      :      FC500 Series
Temperature High      :      260 deg F
Temperature Low      :      -40 deg F
Tube Material      :      Rubber
Wall Thickness      :      0.3 in

Applications: Hydraulic and pneumatic systems

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_FC273B-20_CAT.pdf
