Aeroquip® by Danfoss FC579-04 FC579-04

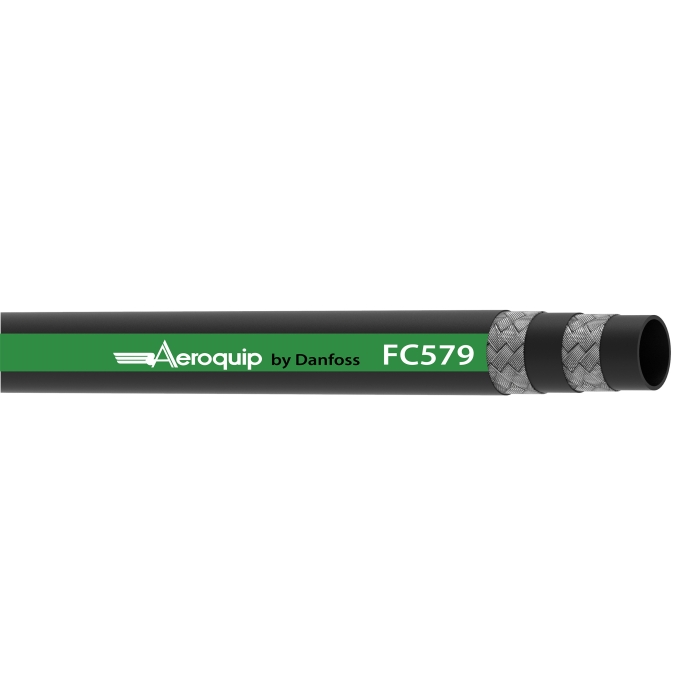

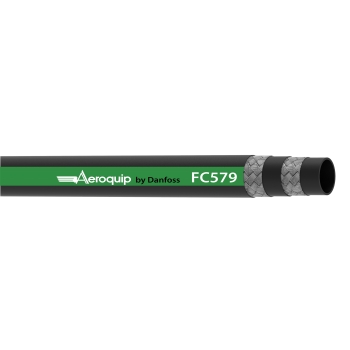

Aeroquip® by Danfoss FC579 Series Hydraulic Hose, Black

Aeroquip® by Danfoss FC579 Series Hydraulic Hose, Black

pin-int

Aeroquip® by Danfoss Hydraulic Hose, FC579 Series, Hydraulic Hose, 1/4 in Nominal, 04 Dash, 1/4 in Inside Diameter, 0.53 in Outside Diameter, 12 in Length, Rubber Cover, Two Wire Braided Reinforcement, Black Hose, 2 in Bend Radius, 1000 psi, Resistance Properties: Standard Abrasion, Temperature High: 212 deg F, Temperature Low: -40 deg F, 0.14 in Wall Thickness

Attribute Type Configurator      :      Parent
Bend Radius      :      2 in
Cover Material      :      Rubber
Dash Size      :      04
Hose Color      :      Black
Hose Type      :      Hydraulic
Inside Diameter      :      1/4 in
Length      :      12 in
Nominal Size      :      1/4 in
Outside Diameter      :      0.53 in
Pressure Rating      :      1000 psi
Reinforcement      :      Two Wire Braided
Resistance Properties      :      Standard Abrasion
Series      :      FC579 Series
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.14 in
Double wire braid Embossed lay line style Hydraulic jacking system service with petroleum and water-base fluids
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_HP4-O_Catalog.pdf
