Aeroquip® by Danfoss GH120-6R500 GH120-6R500

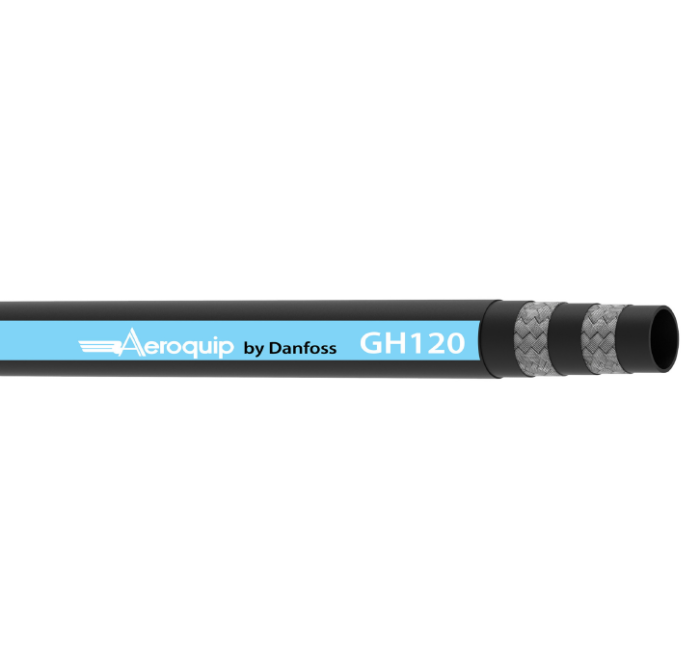

Aeroquip® by Danfoss GH120 Series 2-Wire Braided Hose,4000 psi, Black

Aeroquip® by Danfoss GH120 Series 2-Wire Braided Hose,4000 psi, Black

pin-int

Aeroquip® by Danfoss by Danfoss 2-Wire Braided Hose, Series: GH120 Series, Hose Type: Braided Hose, 06 Dash Size, 0.38 in Inside Dia, 0.7 in Outside Dia, 500 ft Length, Rubber Cover, 2-Ply Braid Reinforcement, Black Hose Color, 2-1/2 in Bend Radius, 5000 psi, Abrasion Resistance Properties, 212 deg F Temperature High, -70 deg F Temperature Low, 0.18 in Wall Thickness

Attribute Type Configurator      :      Parent
Bend Radius      :      2-1/2 in
Cover Material      :      Rubber
Dash Size      :      06
Hose Color      :      Black
Hose Type      :      Braided Hose
Inside Diameter      :      0.38 in
Length      :      500 ft
Outside Diameter      :      0.7 in
Pressure Rating      :      5000 psi
Reinforcement      :      2-Ply Braid
Resistance Properties      :      Abrasion
Series      :      GH120 Series
Temperature High      :      212 deg F
Temperature Low      :      -70 deg F
Wall Thickness      :      0.18 in
Eaton's cold temperature 2-wire braided hose that exceeded both SAE 100R16 and EN857 2SC pressures Dura-Tuff™ cover provides much higher abrasion-resistant leading to longer hose life Eaton's MatchMate™ program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_GH793-32_Catalog.pdf
