Aeroquip® GH781-04R250

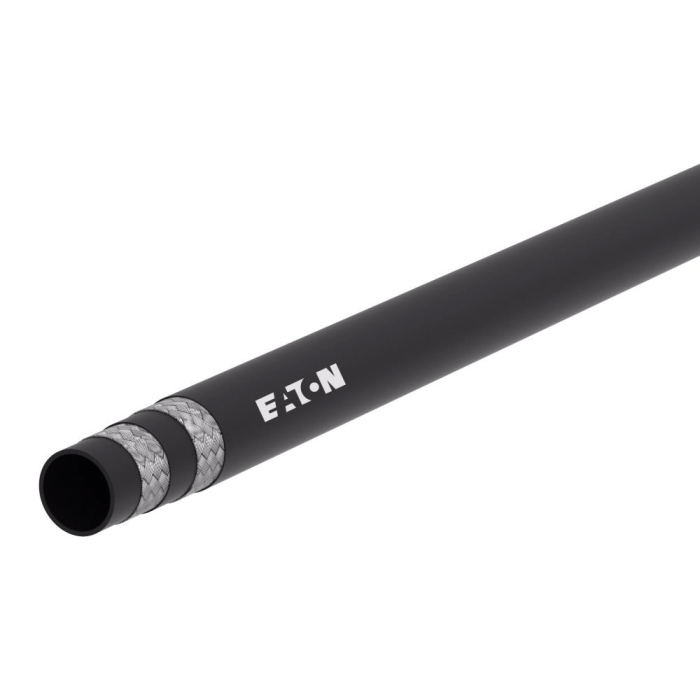

Aeroquip® MatchMate® Global GH781 Black Nitrile Braided Hydraulic Hose, 1/4 in, 1 ft L, 6500 psi
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: GH781-4R250
- MPN: GH781-04R250
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Build Custom Assembly
Aeroquip® MatchMate® Global Braided Hydraulic Hose, Series: GH781, Nominal Size: 1/4 in, Dash Size: 04, 0.56 in OD, 1/4 in ID, 0.31 in Thick Wall, 1 ft Length, 6500 psi, SAE Rating: SAE 100R16/EN 857 2SC, Material Construction: Nitrile, PVC/Nitrile Blend Cover, Construction: 2-Ply Braided Wire, Black, 1.97 in Bend Radius, Resistance Properties: Abrasion, -50.8 deg F Low, 258.8 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 1.97 in |
| Color | : | Black |
| Construction | : | 2-Ply Braided Wire |
| Cover Material | : | PVC/Nitrile Blend |
| Dash Size | : | 04 |
| Inside Diameter | : | 1/4 in |
| Length | : | 1 ft |
| Material | : | Nitrile |
| Material Construction | : | Nitrile |
| Nominal Size | : | 1/4 in |
| Outside Diameter | : | 0.56 in |
| Pressure Rating | : | 6500 psi |
| Product Type | : | Hydraulic Hose |
| Resistance Properties | : | Abrasion |
| SAE Rating | : | SAE 100R16/EN 857 2SC |
| Series | : | GH781 |
| Sub Brand | : | MatchMate® Global |
| Temperature High | : | 258.8 deg F |
| Temperature Low | : | -50.8 deg F |
| Wall Thickness | : | 0.31 in |
- Dura-Tuff™ cover provides much higher abrasion-resistant leading to longer hose life
- Eaton's MatchMate™ program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
Applications: For high pressure hydraulic systems with petroleum and water-glycol-based fluids for lubricating oils and water
