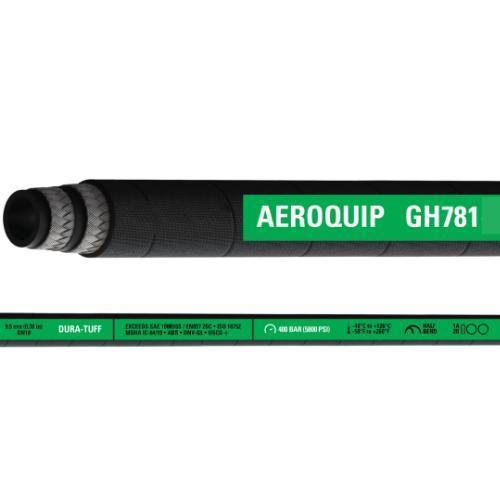

Aeroquip® MatchMate® Global GH781 Nitrile Braided Hydraulic Hose
The Aeroquip® MatchMate® Global Braided Hydraulic Hose, Series GH781, is engineered for high-pressure hydraulic systems utilizing petroleum and water-glycol-based fluids, as well as lubricating oils and water. This hose features a nitrile tube and a durable PVC/nitrile blend cover, reinforced with two-ply braided wire, ensuring robust performance under demanding conditions. Its Dura-Tuff™ cover significantly enhances abrasion resistance, extending the hose's lifespan. The hose is designed for a working pressure of up to 6,500 psi and operates effectively within a temperature range of -50.8°F to 258.8°F. Additionally, Eaton's MatchMate™ program provides identification markings on the hose, fittings, and crimp dies, facilitating quick and accurate assembly.
-
ARGPN: GH781-24
-
-
Nominal Size:
-
Dash Size:
-
Length:
-
Nominal Size:
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Danfoss factory-direct delivery:
Aeroquip® by Danfoss 2-Wire Braided Hose, Series: GH120 Series, Hose Type: Braided Hose, 10 Dash Size, 0.62 in Inside Dia, 1 in Outside Dia, 250 ft Length, Rubber Cover, 2-Ply Braid Reinforcement, Black Hose Color, 4 in Bend Radius, 4000 psi, Abrasion Resistance Properties, 212 deg F Temperature High, -70 deg F Temperature Low
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 9.84 in |
| Cover Material | : | Nitrile/PVC |
| Dash Size | : | 24 |
| Hose Type | : | Braided Hose |
| Inside Diameter | : | 1-1/2 in |
| Length | : | 1 ft |
| Nominal Size | : | 1-1/2 in |
| Outside Diameter | : | 2.08 in |
| Pressure Rating | : | 2000 psi |
| Reinforcement | : | 2-Ply Braid |
| Reinforcement | : | Black |
| Resistance Properties | : | Abrasion |
| Series | : | GH781 Series |
| Temperature High | : | 258.8 deg F |
| Temperature Low | : | -50.8 deg F |
| Tube Material | : | Nitrile |
| Wall Thickness | : | 0.53 in |
