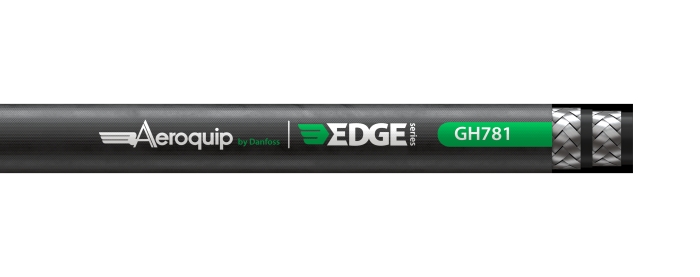

Aeroquip® MatchMate® Global GH781 Nitrile Braided Hydraulic Hose

The Aeroquip® MatchMate® Global Braided Hydraulic Hose, Series GH781, is engineered for high-pressure hydraulic systems utilizing petroleum and water-glycol-based fluids, as well as lubricating oils and water. This hose features a nitrile tube and a durable PVC/nitrile blend cover, reinforced with two-ply braided wire, ensuring robust performance under demanding conditions. Its Dura-Tuff™ cover significantly enhances abrasion resistance, extending the hose's lifespan. The hose is designed for a working pressure of up to 6,500 psi and operates effectively within a temperature range of -50.8°F to 258.8°F. Additionally, Eaton's MatchMate™ program provides identification markings on the hose, fittings, and crimp dies, facilitating quick and accurate assembly.

• ARGPN: GH781-6R250
• • Nominal Size:
    • 3/8 in
      Nominal Size
      3/8 in
    • 3/4 in
      Nominal Size
      3/4 in
    • 1-1/2 in
      Nominal Size
      1-1/2 in
    • 2 in
      Nominal Size
      2 in
    • 1/2 in
      Nominal Size
      1/2 in
    • 1/4 in
      Nominal Size
      1/4 in
    • 1 in
      Nominal Size
      1 in
    • 1-1/4 in
      Nominal Size
      1-1/4 in
    • 5/8 in
      Nominal Size
      5/8 in
  • Dash Size:
    • 06
      Dash Size
      06
    • 12
      Dash Size
      12
    • 24
      Dash Size
      24
    • 32
      Dash Size
      32
    • 08
      Dash Size
      08
    • 04
      Dash Size
      04
    • 16
      Dash Size
      16
    • 20
      Dash Size
      20
    • 10
      Dash Size
      10
  • Inside Diameter:
    • 3/8 in
      Inside Diameter
      3/8 in
    • 3/4 in
      Inside Diameter
      3/4 in
    • 1-1/2 in
      Inside Diameter
      1-1/2 in
    • 2 in
      Inside Diameter
      2 in
    • .50 in
      Inside Diameter
      .50 in
    • 1/4 in
      Inside Diameter
      1/4 in
    • 1 in
      Inside Diameter
      1 in
    • 1-1/4 in
      Inside Diameter
      1-1/4 in
    • 5/8 in
      Inside Diameter
      5/8 in
  • Length:
    • 250 ft
      Length
      250 ft
    • 1 ft
      Length
      1 ft
