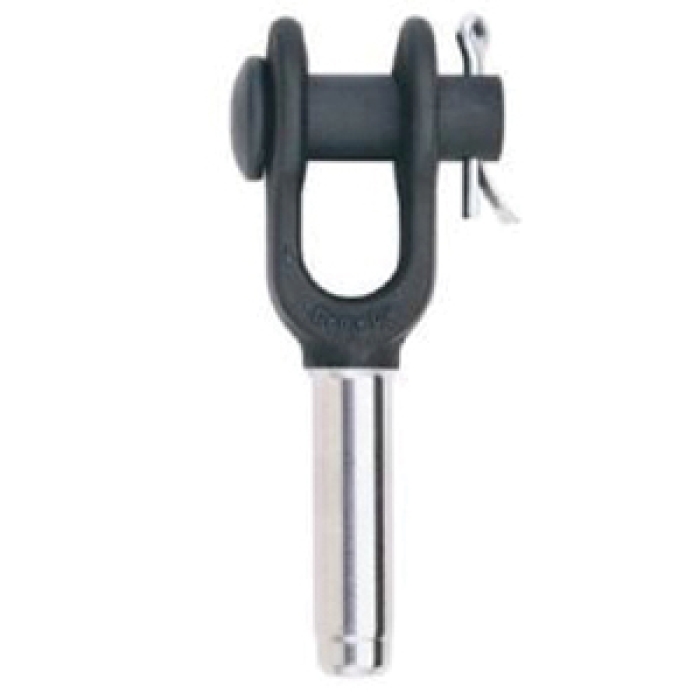

Crosby© National S-501 Carbon Steel Open Swage Socket

Crosby© National S-501 Carbon Steel Open Swage Socket

  • Add to cart
    Add To Favorites
    • pin-int

    Crosby© National Open Swage Socket, Series: S-501, 7/16 in Cable, 0.91 in After Swage Diameter, 1 in Eye Inside Diameter, Material Construction: Carbon Steel, 7.82 in Length, 2 in Width, For Use With: 6 x 19 or 6 x 37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC Wire Rope

    After Swage Diameter      :      0.91 in
    Cable Size      :      7/16 in
    Eye Inside Diameter      :      1 in
    For Use With      :      6 x 19 or 6 x 37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC Wire Rope
    Length      :      7.82 in
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Product Type      :      Swage Socket
    Series      :      S-501
    Width      :      2 in
    • Forged from special bar quality carbon steel
    • Swage socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope
    • Hardness controlled by spheroidize annealing
    • Stamp for identification after swaging without concern for fractures
    • Swage sockets incorporate a reduced machined area of the shank which is equivalent to the proper "After Swage" dimension
    • Before swaging, this provides for an obvious visual difference in the shank diameter
    • After swaging, a uniform shank diameter is created allowing for a Quic-Check® and permanent visual inspection opportunity
    • Designed to quickly determine whether the socket has been through the swaging operation and assist in field inspections

    Applications: For use in cold forming

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Crosby_1004331_CAT.pdf
    • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/National_1039067_SS.pdf
    • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/National_1039085_II.pdf
