Crosby® 1068050 1068050

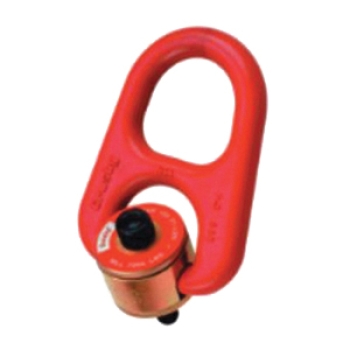

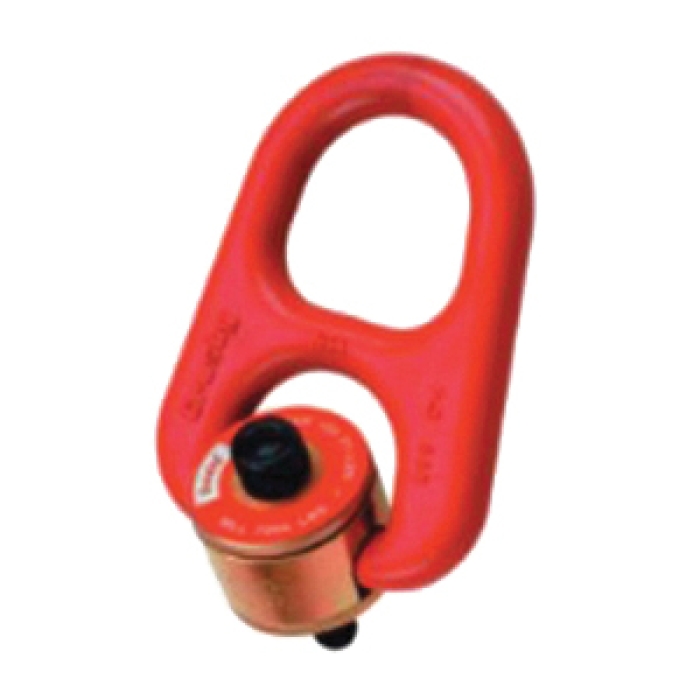

Crosby® HR-1000 Alloy Steel Heavy Lift Swivel Hoist Ring

Crosby® HR-1000 Heavy Lift Swivel Hoist Ring, Alloy Steel

pin-int

Crosby® Heavy Lift Swivel Hoist Ring, Series: HR-1000, 1.35 in Thread, Load Capacity: 10000 lb, 3.65 in Inside Height, Inside Width: 2.96 in, 8.66 in Outside Height, 6.24 in Width Outside, 1 in Bail Diameter, Material Construction: Alloy Steel, Torque Rating: 230 ft-lb

Bail Diameter      :      1 in
Inside Height      :      3.65 in
Inside Width      :      2.96 in
Load Capacity      :      10000 lb
Material      :      Steel
Material Construction      :      Alloy Steel
Outside Height      :      8.66 in
Outside Width      :      6.24 in
Product Type      :      Hoist Ring
Series      :      HR-1000
Thread Size      :      1.35 in
Torque Rating      :      230 ft-lb
  • Easily readable raised lettering showing the name Crosby or CG and PIC code for material traceability
  • Greater durability providing the increased toughness desired in potentially abusive field conditions
  • Larger opening than standard hoist ring bail
  • Top washer is color-coded for easy identification
  • The working load limit and recommended torque value are permanently stamped into each washer
  • Individually-proof tested to 2-1/2 times working load limit
  • Frame 2 and larger are RFID equipped
  • Design factor 5 to 1
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Crosby_1068010_CAT.pdf
