Crosby® 1016909 1016909

Crosby® HR-125 Alloy Steel UNC Swivel Hoist Ring

Crosby® HR-125 UNC Swivel Hoist Ring, Alloy Steel

pin-int

Crosby® UNC Swivel Hoist Ring, Series: HR-125, 0.7 in Thread, Load Capacity: 2500 lb, 2.29 in Inside Height, Inside Width: 1.96 in, 4.85 in Outside Height, 3.35 in Width Outside, 3/4 in Bail Diameter, Swivel Angle: 360 deg, Pivot: 180 deg, Material Construction: Alloy Steel, Torque Rating: 28 ft-lb

Bail Diameter      :      3/4 in
Inside Height      :      2.29 in
Inside Width      :      1.96 in
Load Capacity      :      2500 lb
Material      :      Steel
Material Construction      :      Alloy Steel
Outside Height      :      4.85 in
Outside Width      :      3.35 in
Pivot      :      180 deg
Product Type      :      Hoist Ring
Series      :      HR-125
Swivel Angle      :      360 deg
Thread Size      :      0.7 in
Torque Rating      :      28 ft-lb

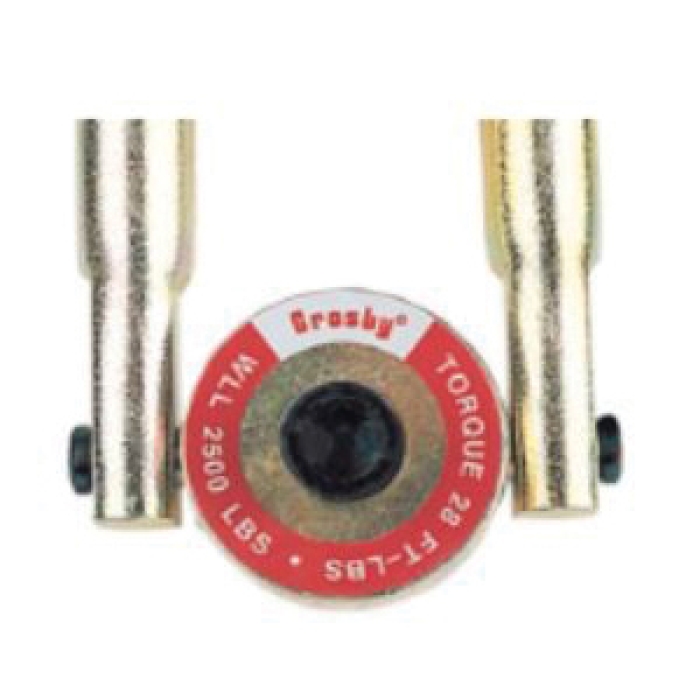

  • The working load limit and recommended torque value are permanently stamped into each washer
  • Washer is color-coded for easy identification
  • Individually-proof tested to 2-1/2 times working load limit
  • Frame 2 and larger are RFID equipped
  • Design factor 5 to 1
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Crosby_1016887_SS_NEW2021.pdf
