Danfoss H052332GN-100 H052332GN-100

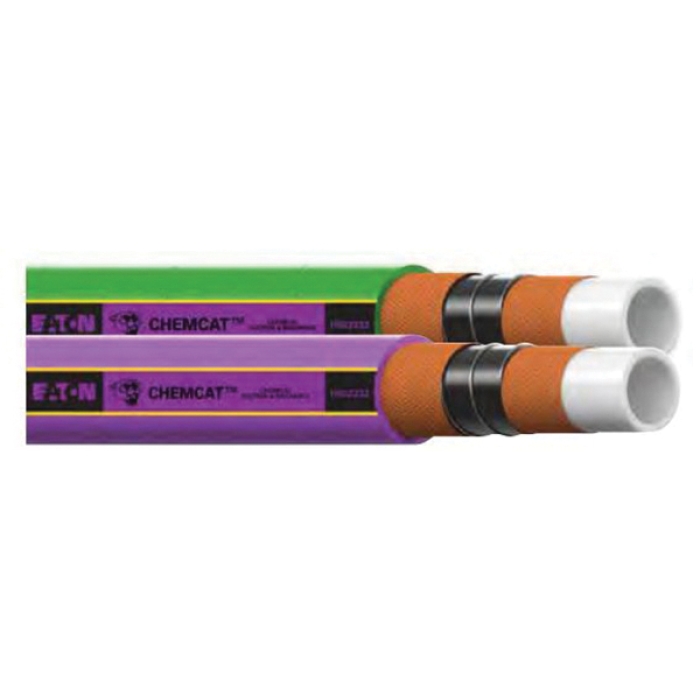

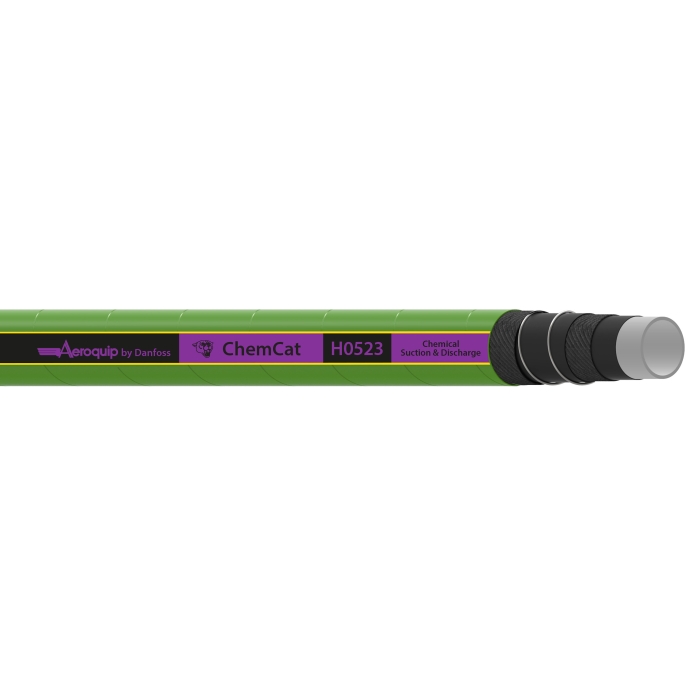

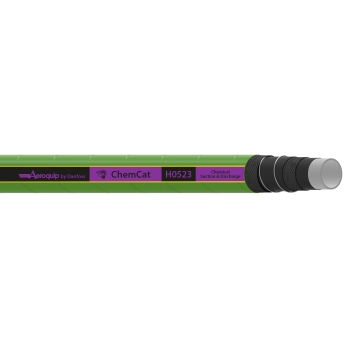

Danfoss CHEMCAT™ H0523 UHMWPE Petrochemical Suction and Discharge Hose

Danfoss CHEMCAT™ H0523 is a robust petrochemical suction and discharge hose designed for versatile applications in the chemical and petroleum industries. Featuring an FDA-approved UHMWPE tube and EPDM cover, it is suitable for transferring acids, chemicals, solvents, petroleum products, food-grade materials, and potable water. Reinforced with 2-ply fiber and dual helical wires, this hose withstands pressures up to 300 PSI and operates in temperatures from -40°F to 250°F. Ideal for in-plant transfers, tank trucks, and industrial processes, the CHEMCAT™ H0523 delivers reliable performance in demanding environments across sectors like shipbuilding, pulp and paper, and bulk hauling.

  • Add to cart
    Add To Favorites
    • pin-int

    Danfoss CHEMCAT™ Petrochemical Suction and Discharge Hose, Series: H0523, Nominal Size: 2 in, 2.63 in OD, 2 in ID, 1 ft Length, 300 psi, Material Construction: UHMWPE, EPDM Cover, Construction: 2-Ply Fiber and Dual Helical Wires, Green, 8 in Bend Radius, -40 deg F Low, 250 deg F High

    Attribute Type Configurator      :      Parent
    Bend Radius      :      8 in
    Color      :      Green
    Construction      :      2-Ply Fiber and Dual Helical Wires
    Cover Material      :      EPDM
    Inside Diameter      :      2 in
    Length      :      100 ft
    Material      :      Polyethylene
    Material Construction      :      UHMWPE
    Nominal Size      :      2 in
    Outside Diameter      :      2.63 in
    Pressure Rating      :      300 psi
    Product Type      :      Suction and Discharge Hose
    Series      :      H0523
    Temperature High      :      250 deg F
    Temperature Low      :      -40 deg F
    • UHMW-PE FDA approved material tube

    Applications: Transfer of acids, chemicals, solvents and petroleum products, food transfer, potable water chemical petroleum industry in in-plant transfers, tank truck, paper/pulp industry, bulk hauling, ship building, forest products
