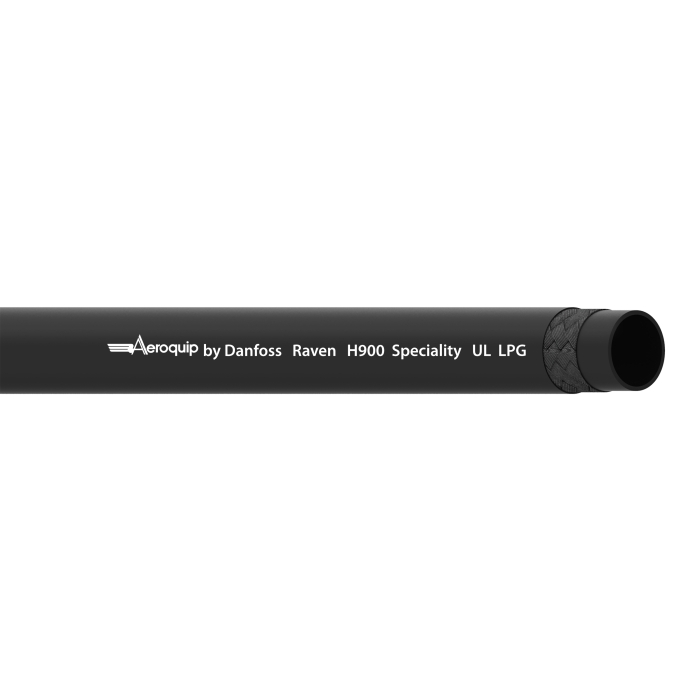

The Danfoss LPG Hose Series H900 is designed for the transfer and delivery of propane, butane, and natural gas in well-ventilated areas. Constructed with a nitrile tube, pin-pricked vinyl nitrile cover, and 2-ply textile braid reinforcement, this hose ensures durability and resistance to LPG fluids and abrasion. It operates at a maximum pressure of 350 psi and a temperature range of -40°F to 140°F, with a 5:1 safety factor for reliable performance.
Click here
Danfoss LPG Hose, Series: H900, Nominal Size: 3/8 in, Dash Size: 06, 0.73 in OD, 0.37 in ID, 0.17 in Thick Wall, 1 ft Length, 350 psi, Material Construction: Nitrile, Pin-pricked Vinyl Nitrile Cover, Construction: 2-Ply Braid, Black, 4-1/2 in Bend Radius, Resistance Properties: Abrasion, LPG Fluids, -40 deg F Low, 140 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 4-1/2 in |
| Color | : | Black |
| Construction | : | 2-Ply Braid |
| Cover Material | : | Pin-pricked Vinyl Nitrile |
| Dash Size | : | 06 |
| Inside Diameter | : | 0.37 in |
| Length | : | 500 ft |
| Material | : | Nitrile |
| Material Construction | : | Nitrile |
| Nominal Size | : | 3/8 in |
| Outside Diameter | : | 0.73 in |
| Pressure Rating | : | 350 psi |
| Product Type | : | LPG Hose |
| Resistance Properties | : | Abrasion, LPG Fluids |
| Series | : | H900 |
| Temperature High | : | 140 deg F |
| Temperature Low | : | -40 deg F |
| Wall Thickness | : | 0.17 in |
Applications: Transfer and delivery of propane and butane
