Dixon® AM6 AM6

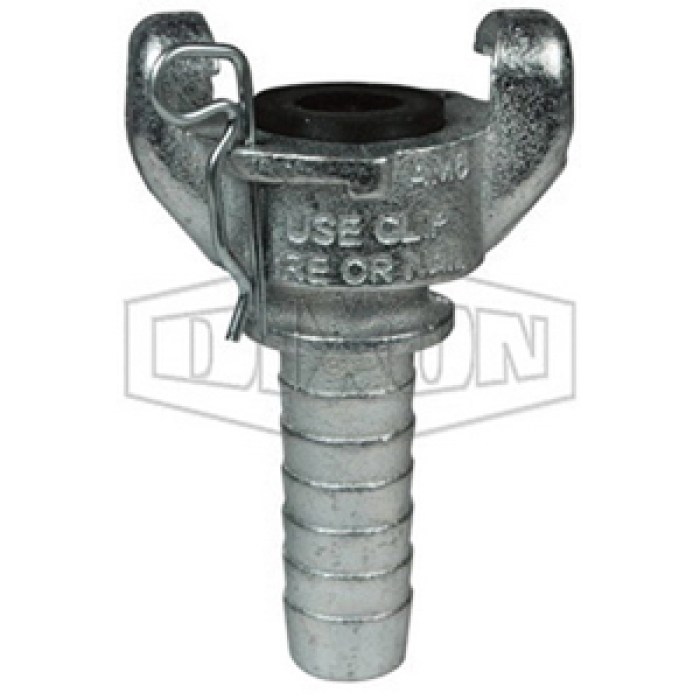

Dixon® Air King™ Iron 2-Lug Hose End

Dixon® Air King™ 2-Lug Hose End, Hose, Iron, 150 psi

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Air King™ 2-Lug Hose End, Connection Type 1: Hose, Connection Size 1: 3/4 in, 150 psi, Material Construction: Iron, Dimensions: 3-15/16 in L x 2-1/2 in W, For Use With: Air King™ Ferrules

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      3/4 in
    Connection Type 1      :      Hose
    Dimensions      :      3-15/16 in L x 2-1/2 in W
    For Use With      :      Air King™ Ferrules
    Material      :      Malleable Iron
    Material Construction      :      Iron
    Pressure Rating      :      150 psi
    Shape      :      Hose End
    Sub Brand      :      Air King™
    • Safety clip included
    • Supplied with rubber washer AWR4
    • Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
    • Only one Air King™ safety clip or wire-type retainer is required for each Air King™ universal coupling
    • Air King™ meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D

    Applications: For air and water service only

    Safety Notes:

    • Air King is for air and water service only.
    • Never use any Air King coupling for steam service!
    • The use of an Air King safety clip or wire-type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected.
    • To provide protection against coupling breakage and related hazards, Dixon® recommends the use of a whip hose.
    • Pressure rating given at ambient temperature 70 deg F.
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AM1_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AM5_SS.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AM6_TD.pdf
