Dixon® AM23 AM23

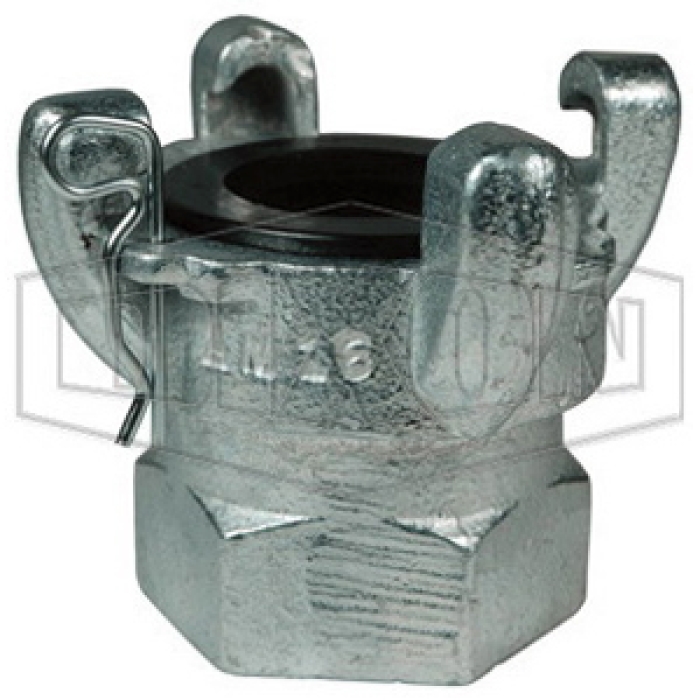

Dixon® Air King™ Iron FNPT 4-Lug Hose End

Dixon® Air King™ 4-Lug Hose End, NPT, Iron, 150 psi

  • ARGPN: AM23 loading
  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Air King™ 4-Lug Hose End, Connection Type 1: NPT, Gender 1: Female, Connection Size 1: 1-1/2 in, 150 psi, Material Construction: Iron, Dimensions: 3 in W x 3-3/4 in H, 70 deg F, For Use With: Boss™ Clamps

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1-1/2 in
    Connection Type 1      :      NPT
    Dimensions      :      3 in W x 3-3/4 in H
    For Use With      :      Boss™ Clamps
    Gender 1      :      Female
    Material      :      Malleable Iron
    Material Construction      :      Iron
    Pressure Rating      :      150 psi
    Shape      :      Hose End
    Sub Brand      :      Air King™
    Temperature Rating      :      70 deg F
    • Safety clip included
    • Supplied with rubber washer AWR14

    Safety Notes: Air King is for air and water service only.

  • Never use any Air King coupling for steam service!
  • None of Dixon's catalog information is to be interpreted to mean that this type of coupling is suitable for use on steam hose.
  • Must use safety clips.
  • Pressure rating given at ambient temperature 70 deg F.

    Applications: For air and water service only

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSDPA_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AM18_SS.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AM23_TD.pdf
