Dixon® GB46 GB46

Dixon® GB46

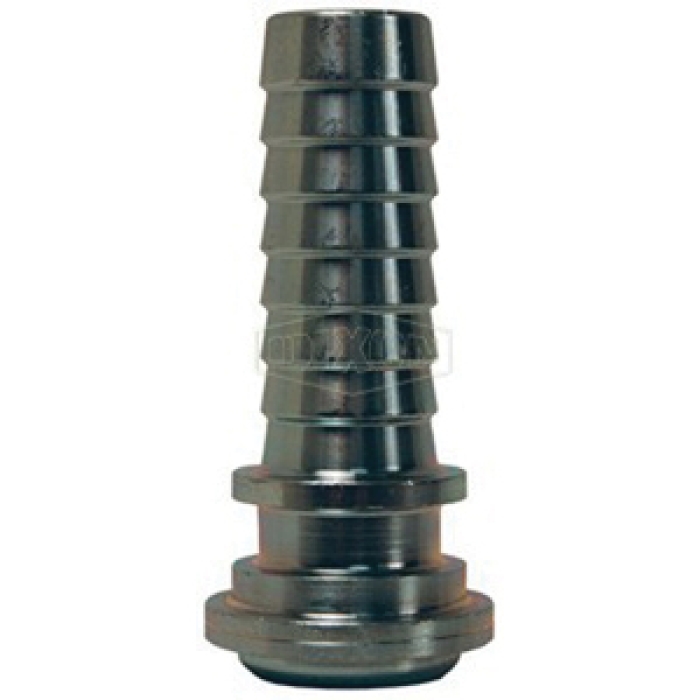

Dixon® Boss™ GB46 Plated Iron Ground Joint Stem, 4 in Hose Shank x 4 in MNPT

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: GB46
  • MPN: GB46
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Boss™ Ground Joint Stem, Connection Type 1: Hose Stem, Connection Size 1: 4 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 4 in, Material Construction: Iron, Finish: Plated, Dimensions: 8-3/8 in L, 450 deg F, For Use With: Boss™ Clamps

California residents see Prop 65 WARNINGS

Connection Size 1      :      4 in
Connection Size 2      :      4 in
Connection Type 1      :      Hose Stem
Connection Type 2      :      NPT
Dimensions      :      8-3/8 in L
Finish      :      Plated
For Use With      :      Boss™ Clamps
Gender 2      :      Male
Material      :      Malleable Iron
Material Construction      :      Iron
Shape      :      Ground Joint Stem
Sub Brand      :      Boss™
Temperature Rating      :      450 deg F
Boss™ couplings are all-purpose hose couplings, universally recommended for steam hose connectionsBoss™ couplings can be applied to many-types of rubber, synthetic, plastic, metallic or semi-metallic hoseBoss™ ground joint complete couplings supply a convenient threaded fitting to connect two lengths of hose or a single length to a male or female threaded outletThe stem part that is clamped to the hose is one-half of the Boss™ ground joint connectionThe Boss™ ground joint spud part of the coupling serves as the other half and is usually fixed to the equipmentThe two halves are connected or disconnected by rotating the wing nut on the spudWhen connected they achieve both a mechanical and a pressure sealLeak-proof seal forms when the metal head of the stem makes contact with the patented polymer seat in the Boss™ ground joint spudEasy-to-sealSafety Notes: Worn-out hose couplings can be dangerous.They should be checked regularly and replace when necessary.Each coupling user should review applications and add safety devices where indicated.Pressurized steam is an extremely dangerous commodity.Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used!Never use an unapproved item for steam service.Always follow the manufacturer's product recommendations for pressurized steam handling.Applications: For steam hose connections, air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1 in ID
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_14MPHRL100_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GB21_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GB46_TD.pdf
