Dixon® 2HOF3

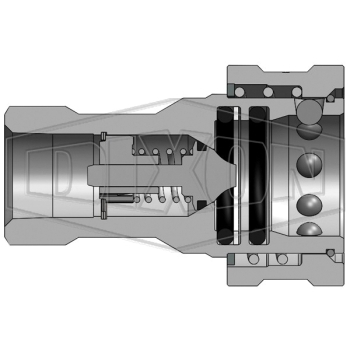

Dixon® H Series Trivalent Chrome-Plated Steel ISO-B Poppet Interchange Valve Coupler, 1/4 in Quick Disconnect x 9/16 in Female ORB
- Manufacturer: Dixon Valve & Coupling Company, LLC
- Brand: Dixon®
- ARGPN: 2HOF3
- MPN: 2HOF3
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Dixon Valve & Coupling Company, LLC factory-direct delivery:
-
Dixon® ISO-B Poppet Interchange Valve Coupler, Series: H, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: ORB, Gender 2: Female, Connection Size 2: 9/16 in, Thread Size 2: 9/16-18, Hex Size: 13/16 in, 5000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.12 in OD x 2.29 in L, Dimension Standards: ISO 7241 Series B, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Connection Size 1 | : | 1/4 in |
| Connection Size 2 | : | 9/16 in |
| Connection Type 1 | : | Quick Disconnect |
| Connection Type 2 | : | ORB |
| Dimension Standards | : | ISO 7241 Series B |
| Dimensions | : | 1.12 in OD x 2.29 in L |
| Finish | : | Trivalent Chrome-Plated |
| Gender 2 | : | Female |
| Hex Size | : | 13/16 in |
| Industry Category | : | Hydrulic Quick Disconnects |
| Material | : | Steel |
| Material Construction | : | Steel |
| Pressure Rating | : | 5000 psi |
| Series | : | H |
| Shape | : | Coupler |
| Temperature Rating | : | -40 to 250 deg F |
| Thread Size 2 | : | 9/16-18 |
Poppet style shut-off valvesMachined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeSteel coupler sleeves are hardened to resist deformation and maximize service lifeNitrile (Buna-N) seals are standardRedundant O-ring sealing system with PTFE back-up ringValve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connectionInterchangeable with Parker-Hannifin 60 Series, Snap-Tite 72 Series, Hansen HK Series, Faster HNV Series, Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
