Dixon® WS8F8 WS8F8

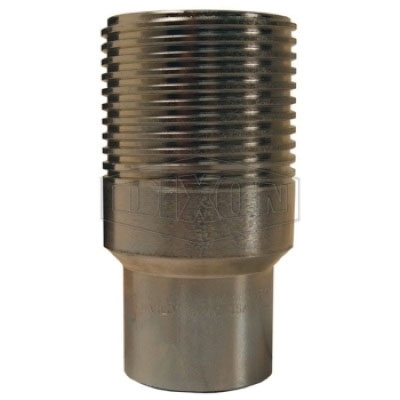

Dixon® WS Series Zinc/Nickel-Plated Steel High-Pressure Wingstyle Plug

Dixon® WS Series High-Pressure Wingstyle Plug, Zinc/Nickel-Plated Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® High-Pressure Wingstyle Plug, Series: WS, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, 5000 psi, Material Construction: Steel, Finish: Zinc/Nickel-Plated, Dimensions: 2.25 in OD x 4.18 in L, -40 to 250 deg F

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1 in
    Connection Size 2      :      1 in
    Connection Type 1      :      Quick Disconnect
    Connection Type 2      :      NPTF
    Dimensions      :      2.25 in OD x 4.18 in L
    Finish      :      Zinc/Nickel-Plated
    Gender 2      :      Female
    Industry Category      :      Hydraulic Quick Disconnects
    Material      :      Steel
    Material Construction      :      Steel
    Pressure Rating      :      5000 psi
    Series      :      WS
    Shape      :      Plug
    Temperature Rating      :      -40 to 250 deg F
    Thread Size 2      :      1-11-1/2
    • Machined components are manufactured using solid steel bar stock
    • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
    • Steel componentry is plated using RoHS compliant zinc nickel for superior corrosion resistance
    • Nitrile (Buna-N) seals are standard, providing a temperature range of -40 to 250 deg F
    • PTFE anti-extrusion ring protects main coupling O-ring from dynamic impulse pressure damage
    • Main valve seal is 'housed' to improve seal integrity during pressurized connection/disconnection
    • Snap-Tite 75-Series, Hydraulics Inc. Series- 5TV, DNP VFF-HD
    • Stucchi VOF, Faster OGV, Eaton FD85, Holmbury LC

    Applications: For oil field and offshore oil rig applications

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSDPA_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSOF10_SS.pdf
