Enerpac® RCH202 RCH-202

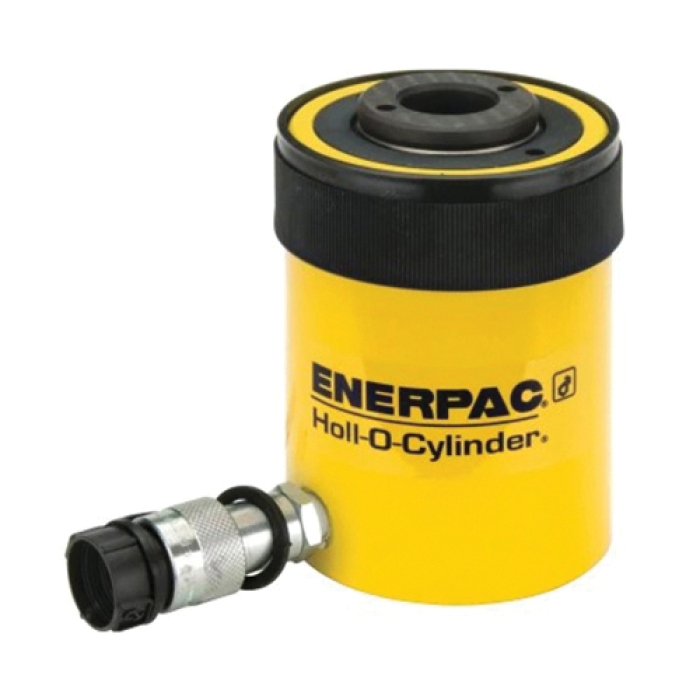

ENERPAC® RCH Hollow Plunger Hydraulic Cylinder

ENERPAC® RCH Hollow Plunger Hydraulic Cylinder, Baked Enamel, Steel, 10000 psi

pin-int

ENERPAC® Hollow Plunger Hydraulic Cylinder, Series: RCH, 2.88 in Bore Diameter, 2 in Length Stroke, 6.38 in Length Retracted, 2.13 in Rod, 10000 psi, Base Mount, Material Construction: Steel, Finish: Baked Enamel, 23.6 ton Capacity, 2.13 in Hollow Plunger, 6.38 in Collapsed x 8.38 in Extended Height, 3.88 in OD

Bore Diameter      :      2.88 in
Capacity      :      23.6 ton
Finish      :      Baked Enamel
Height      :      6.38 in Collapsed x 8.38 in Extended
Material      :      Steel
Material Construction      :      Steel
Mounting Type      :      Base
Outside Diameter      :      3.88 in
Plunger Type      :      2.13 in Hollow
Pressure Rating      :      10000 psi
Product Type      :      Hydraulic Cylinder
Retracted Length      :      6.38 in
Rod Size      :      2.13 in
Series      :      RCH
Stroke Length      :      2 in
  • Hollow plunger design allows for both pull and push forces
  • Single-acting, spring return
  • Baked enamel finish for increased corrosion resistance
  • Collar threads for easy fixturing
  • Features CR-400 coupler
