Enerpac® RCS101 RCS-101

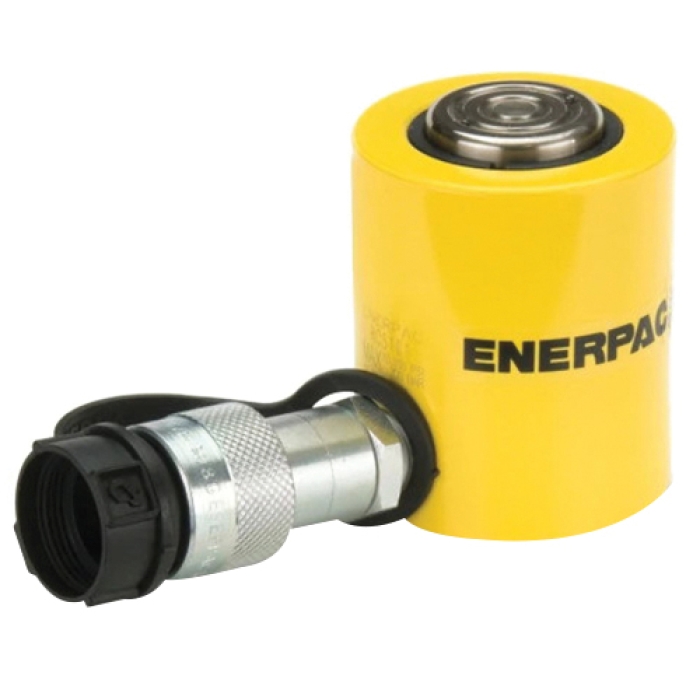

Enerpac® RCS Low Height Hydraulic Cylinder

Enerpac® RCS Low Height Hydraulic Cylinder, Baked Enamel, Steel, 10000 psi

  • Add to cart
    Add To Favorites
    • pin-int

    Enerpac® Low Height Hydraulic Cylinder, Series: RCS, 1.69 in Bore Diameter, 1-1/2 in Length Stroke, 3.47 in Length Retracted, 1-1/2 in Rod, 10000 psi, Material Construction: Steel, Finish: Baked Enamel, 11.2 ton Capacity, 1-1/2 in Solid Plunger, 3.47 in Collapsed x 4.97 in Extended Height, 2-3/4 in OD

    Bore Diameter      :      1.69 in
    Capacity      :      11.2 ton
    Finish      :      Baked Enamel
    Height      :      3.47 in Collapsed x 4.97 in Extended
    Material      :      Steel
    Material Construction      :      Steel
    Outside Diameter      :      2-3/4 in
    Plunger Type      :      1-1/2 in Solid
    Pressure Rating      :      10000 psi
    Product Type      :      Hydraulic Cylinder
    Retracted Length      :      3.47 in
    Rod Size      :      1-1/2 in
    Series      :      RCS
    Stroke Length      :      1-1/2 in
    • Lightweight, low profile design for use in confined spaces
    • Baked enamel finish for increased corrosion resistance
    • CR-400 coupler and dust cap included on all models
    • Grooved plunger end with threaded holes for mounting tilt saddles
    • Plated steel plungers
    • Single-acting, spring return
