Enerpac® RSM100 RSM-100

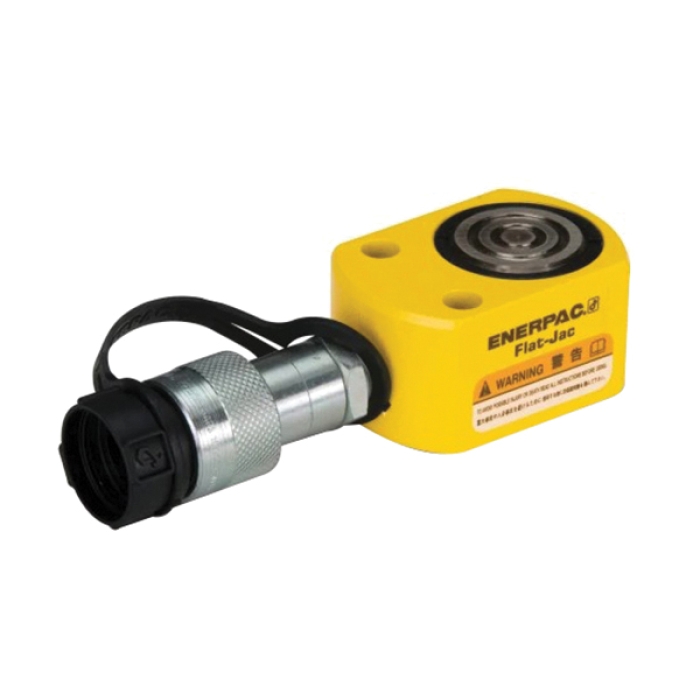

Enerpac® RSM Low Height Hydraulic Cylinder

Enerpac® RSM Low Height Hydraulic Cylinder, Baked Enamel/Chrome-Plated, Steel, 10000 psi

  • Add to cart
    Add To Favorites
    • pin-int

    Enerpac® Low Height Hydraulic Cylinder, Series: RSM, 1.69 in Bore Diameter, 0.44 in Length Stroke, 1.69 in Length Retracted, 10000 psi, Material Construction: Steel, Finish: Baked Enamel/Chrome-Plated, 11.2 ton Capacity, 1-1/2 in Solid Plunger, 1.69 in Collapsed x 2.13 in Extended Height, 3.25 x 2.19 in OD

    Bore Diameter      :      1.69 in
    Capacity      :      11.2 ton
    Finish      :      Baked Enamel/Chrome-Plated
    Height      :      1.69 in Collapsed x 2.13 in Extended
    Material      :      Steel
    Material Construction      :      Steel
    Outside Diameter      :      3.25 x 2.19 in
    Plunger Type      :      1-1/2 in Solid
    Pressure Rating      :      10000 psi
    Product Type      :      Hydraulic Cylinder
    Retracted Length      :      1.69 in
    Series      :      RSM
    Stroke Length      :      0.44 in
    • Compact, flat design for use where other cylinders will not fit
    • Mounting holes permit easy fixturing
    • CR-400 coupler and dust cap included on all models
    • Hard chrome-plated high-quality steel plungers
    • Grooved plunger ends require no saddle
    • Single-acting, spring return
