Gates® 4657-8068 3M3K

Gates® 4657-8068

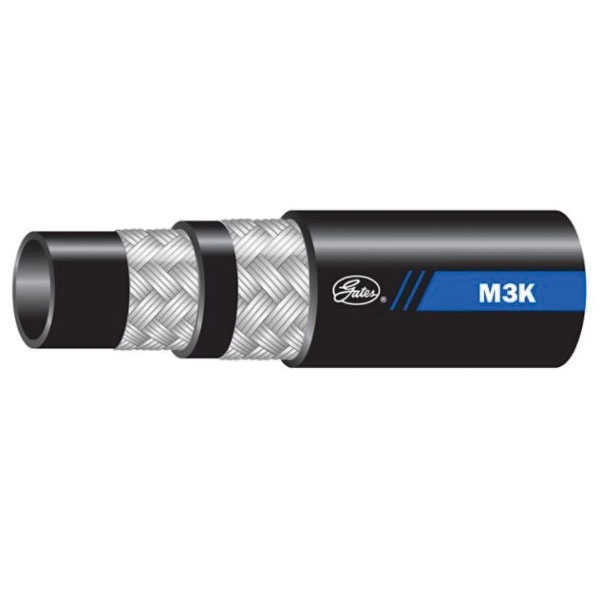

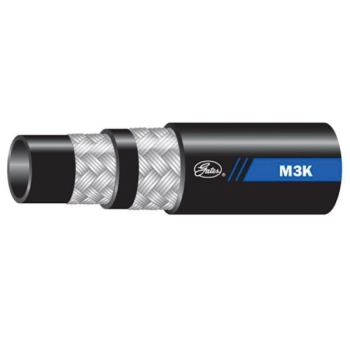

Gates® Mega3000® M3K Black Synthetic Rubber Hydraulic Braided Hose, 3/16 in, 3250 psi

pin-int

Gates® Mega3000® Hydraulic Braided Hose, Series: M3K, Nominal Size: 3/16 in, Dash Size: 03, 0.43 in OD, 3/16 in ID, 3250 psi, SAE Rating: SAE 100R17, Material Construction: Synthetic Rubber, Type C2 Nitrile/PVC Cover, Construction: 1-Braid of High-Tensile Steel Wire, Black, 1.3 in Bend Radius, Resistance Properties: Abrasion, Oil, Weather, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      1.3 in
Color      :      Black
Construction      :      1-Braid of High-Tensile Steel Wire
Cover Material      :      Type C2 Nitrile/PVC
Dash Size      :      03
Inside Diameter      :      3/16 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      3/16 in
Outside Diameter      :      0.43 in
Pressure Rating      :      3250 psi
Product Type      :      Braided Hose
Resistance Properties      :      Abrasion, Oil, Weather
SAE Rating      :      SAE 100R17
Series      :      M3K
Sub Brand      :      Mega3000®
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F
  • Easy to route and to install in extremely tight areas
  • M3K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance tested to 600,000 impulse cycles, 3X the industry standard
  • Meets flame-resistant acceptance designation MSHA 2G
  • 70% of EN 857 1SC/2SC and 50% of EN 853 1SN/2SN bend radius at rated working pressure
  • Mega3000 rated at 3250 psi working pressure and 13000 burst for all ID's
  • Exceeds working pressure requirements of R17
  • Validated with MegaCrimp®
  • Black, oil, abrasion and weather-resistant, synthetic rubber (nitrile/PVC - Type C2) with color-coded lay line cover

Applications: For high pressure hydraulic oil lines

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_36581779_CAT.pdf
