Gates® 3658-1779 10C5C

Gates® 3658-1779

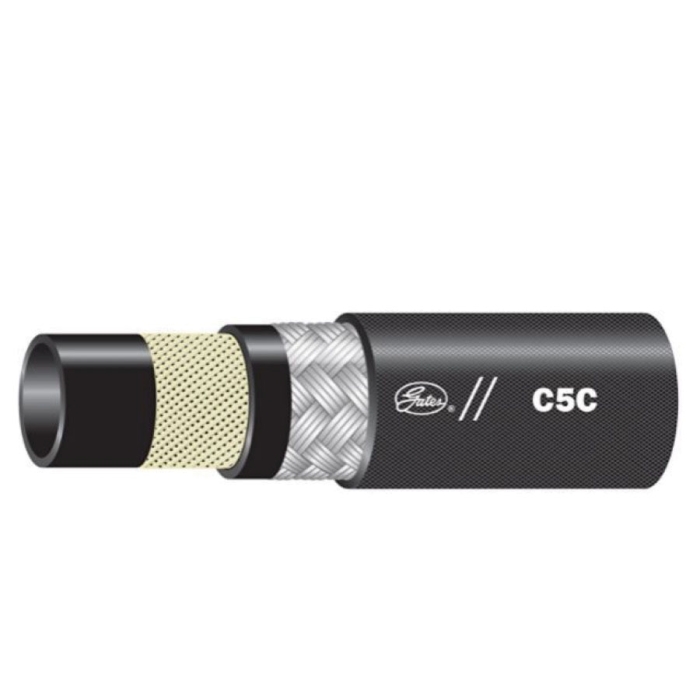

Gates® C5C Black Synthetic Rubber Hydraulic Hose, 1/2 in, 1750 psi

pin-int

Gates® Hydraulic Hose, Series: C5C, Nominal Size: 1/2 in, Dash Size: 10, 0.92 in OD, 1/2 in ID, 1750 psi, SAE Rating: SAE 100R5, Material Construction: Synthetic Rubber, Polyester Braid Cover, Construction: 1-Braid of High-Tensile Carbon Steel Wire Over 1-Braid of Polyester, Black, 5-1/2 in Bend Radius, Resistance Properties: Heat, Mildew, Oil, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      5-1/2 in
Color      :      Black
Construction      :      1-Braid of High-Tensile Carbon Steel Wire Over 1-Braid of Polyester
Cover Material      :      Polyester Braid
Dash Size      :      10
Industry Category      :      Fleet Maintenance Bulk Hydraulic Hoses
Inside Diameter      :      1/2 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1/2 in
Outside Diameter      :      0.92 in
Pressure Rating      :      1750 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Heat, Mildew, Oil
SAE Rating      :      SAE 100R5
Series      :      C5C
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F
  • Avoid continuous use at maximum temperature concurrent with maximum working pressures

Applications: For medium-pressure hydraulic petroleum-based oil lines in impulse applications, lube oil, air and water in applications such as air brakes, power steering, turbocharger oil supplies, tilt cab cylinders, transmission coolant and filtration lines

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_36581779_CAT.pdf
