Gates® 4657-8843 4CR2

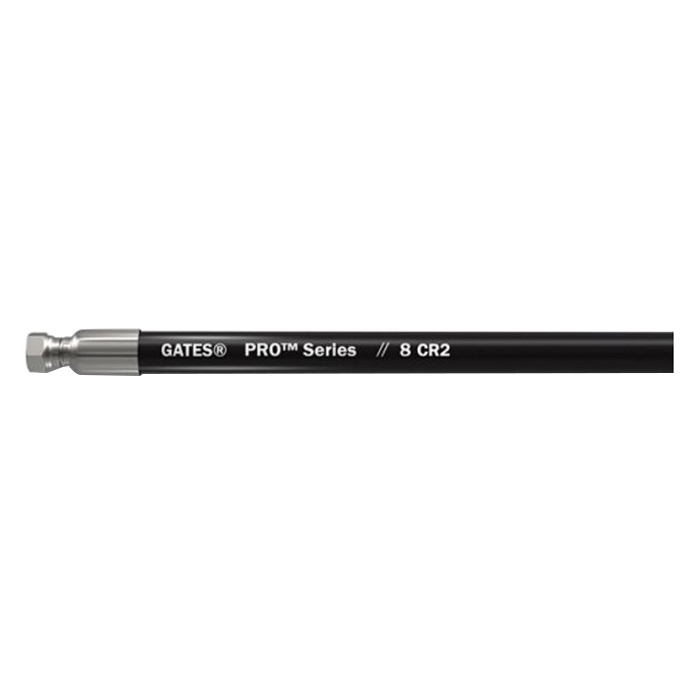

Gates® PRO™ CR2 Black Synthetic Rubber Hydraulic Braided Hose

Gates® PRO™ CR2 Black Synthetic Rubber Hydraulic Braided Hose, 1/4 in, 5800 psi

pin-int

Gates® Hydraulic Braided Hose, Series: PRO™, CR2, Nominal Size: 1/4 in, Dash Size: 04, 0.57 in OD, 1/4 in ID, 5800 psi, SAE Rating: SAE 100R2, Material Construction: Synthetic Rubber, SBR Cover, Construction: 2-Braided High-Tensile Steel Wire, Black, 4 in Bend Radius, Resistance Properties: Abrasion, Oil, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      4 in
Color      :      Black
Construction      :      2-Braided High-Tensile Steel Wire
Cover Material      :      SBR
Dash Size      :      04
Inside Diameter      :      1/4 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1/4 in
Outside Diameter      :      0.57 in
Pressure Rating      :      5800 psi
Product Type      :      Braided Hose
Resistance Properties      :      Abrasion, Oil
SAE Rating      :      SAE 100R2
Series      :      PRO™, CR2
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F

Gates® PRO™ Series CR2 variable pressure hydraulic hoses deliver performance and reliability in a two-wire construction. Engineered for less demanding hydraulic applications, our line of professional-grade hoses are designed to balance product performance and investment for everyday uses. All sizes deliver consistent performance to SAE and EN industry specifications. Qualified with Gates® PRO™ Series and MegaCrimp® couplings.

  • Tested to minimum SAE 100R2 200,000 impulse cycles
  • Validated with EX couplings
  • Black, abrasion-resistant, synthetic rubber (modified SBR) cover

Applications: For medium-pressure hydraulic with low flexure/non-flexure applications

  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_46578851_SS.pdf
