Green Pin® GPGHBB16 GPGHBB16

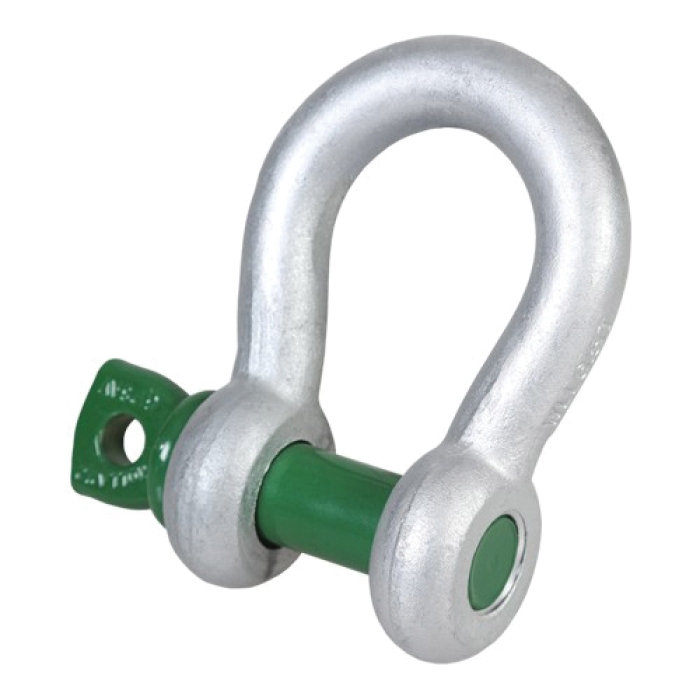

Green Pin® G-4161 Hot Dipped Galvanized Grade 6 High Tensile Steel Screw Pin Anchor Bow Shackle

Green Pin® G-4161 Screw Pin Anchor Bow Shackle, Hot-Dipped Galvanized, Grade 6 High Tensile Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Green Pin® Screw Pin Anchor Bow Shackle, Series: G-4161, Load Capacity: 3.25 ton, Size: 5/8 in, 3/4 in Pin Diameter, Screw Pin, Inside Length: 1-1/16 in, Inside Width: 2-17/32 in, Eye Outer Size: 1-9/16 in, Material Construction: Grade 6 High Tensile Steel, Finish: Hot-Dipped Galvanized, 4-11/32 in Length, 2-15/16 in Width

    Eye Outer Size      :      1-9/16 in
    Finish      :      Hot-Dipped Galvanized
    Inside Length      :      1-1/16 in
    Inside Width      :      2-17/32 in
    Length      :      4-11/32 in
    Load Capacity      :      3.25 ton
    Material      :      Steel
    Material Construction      :      Grade 6 High Tensile Steel
    Pin Diameter      :      3/4 in
    Pin Type      :      Screw
    Product Type      :      Bow Shackle
    Series      :      G-4161
    Size      :      5/8 in
    Width      :      2-15/16 in

    The Green Pin® bow shackle sc is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. The Green Pin® bow shackle sc can be used for both one-leg and multi-leg systems. Due to the galvanization of the shackle its long-term durability is assured. The shackle's design reduces the wear of (wire) rope as the screw thread is hidden in a chamber. Particularly important for use offshore, the Green Pin® bow shackle sc conforms to a wide range of certifications from class societies such as DNV GL. The shackle is available in a range with a working load limit from 0.33 up to 55 ton.

    • Screw pin for quick (dis) assembly
    • Galvanization assures long term durability
    • Superior stock availability of 99%
    • 6:1 safety factor

    Applications: For 1-leg and multi-leg system

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Green Pin_GPGHBB65_CAT.pdf
