Hansen™ and Gromelle™ 3PB7 3PB7

Hansen™ and Gromelle™ 3PB7

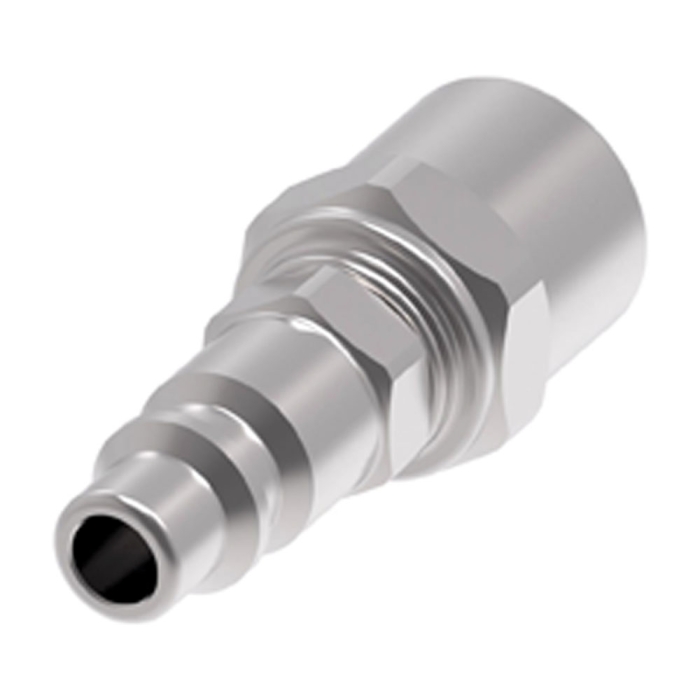

Hansen™ and Gromelle™ 3000 Zinc-Plated Carbon Steel Coupling Plug, 1/4 in Male Quick Disconnect x 1/4 in ID and 5/8 in OD Hose Barb

  • Manufacturer: Danfoss Power Solutions
  • Brand: Hansen™ and Gromelle™
  • ARGPN: 3PB7
  • MPN: 3PB7
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Hansen™ and Gromelle™ Coupling Plug, Series: 3000, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: Hose Barb, Connection Size 2: 1/4 in ID x 5/8 in OD, Hex Size: 3/4 in, 8000 psi, Material Construction: Carbon Steel, Finish: Zinc-Plated, Dimensions: 2.31 in L x 0.54 in H, Dimension Standards: ISO 6150 Series B, -40 to 250 deg F

Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in ID x 5/8 in OD
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Hose Barb
Dimension Standards      :      ISO 6150 Series B
Dimensions      :      2.31 in L x 0.54 in H
Finish      :      Zinc-Plated
Gender 1      :      Male
Hex Size      :      3/4 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      8000 psi
Series      :      3000
Shape      :      Plug
Temperature Rating      :      -40 to 250 deg F
Danfoss's 3000 Series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids. This series sets the industry standard for pin lock style pneumatic couplings. Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line All sizes accept US industrial interchange, 1/4 and 1/2 in also accept ISO 6150 Series B and A-A-59439 plugs/males Buna-N seal material Applications: Fluid transfer, general pneumatics, industrial breathing air, maintenance and repair
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Hansen and Gromelle_100506_CAT.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Hansen and Gromelle_3PB7_TD.pdf
