Hansen™ and Gromelle™ 3L23D11 3L23D11

Hansen™ and Gromelle™ 3L23D11

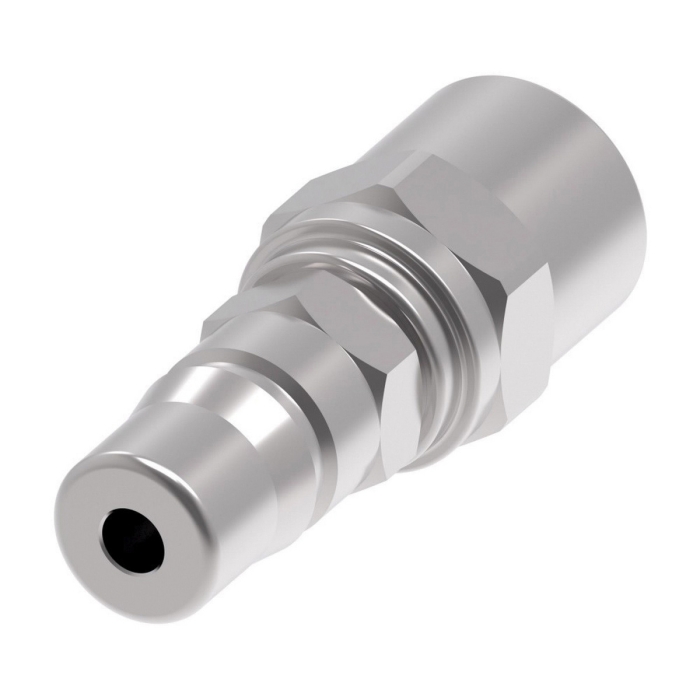

Hansen™ and Gromelle™ 3RL Zinc Trivalent-Plated Carbon Steel Coupling Plug, 3/8 in Male Quick Disconnect x 3/8 in ID and 3/4 in OD Hose

  • Manufacturer: Danfoss Power Solutions
  • Brand: Hansen™ and Gromelle™
  • ARGPN: 3L23D11
  • MPN: 3L23D11
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Hansen™ and Gromelle™ Coupling Plug, Series: 3RL, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 3/8 in, Connection Type 2: Hose, Connection Size 2: 3/8 in ID x 3/4 in OD, Hex Size: 0.88 in, 300 psi, Material Construction: Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 2.45 in L x 0.98 in W x 0.98 in H, -40 to 250 deg F

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in ID x 3/4 in OD
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Hose
Dimensions      :      2.45 in L x 0.98 in W x 0.98 in H
Finish      :      Zinc Trivalent-Plated
Gender 1      :      Male
Hex Size      :      0.88 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      300 psi
Series      :      3RL
Shape      :      Plug
Temperature Rating      :      -40 to 250 deg F

Eaton's 3RL ring lock Series quick disconnect pneumatic couplings have a unique interchange which Eaton designed for use with compressed air.

  • High flow capacity
  • Push to connect with a ring lock sleeve
  • Ring lock design prevents accidental disconnection
  • To disconnect rotate sleeve 20 deg
  • Buna-N seal material

Applications: Shipyards, general pneumatics, mining, marine
