Hansen™ and Gromelle™ 1S10 1S10

Hansen™ and Gromelle™ 1S10

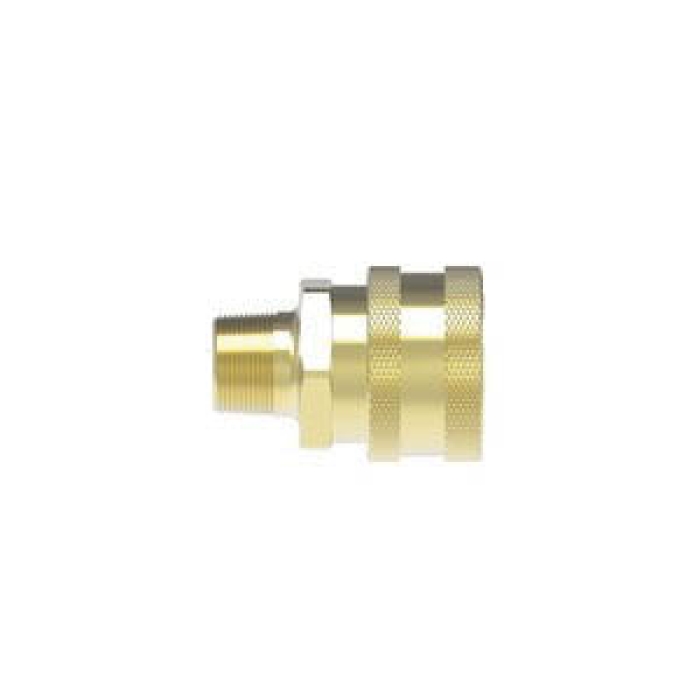

Hansen™ and Gromelle™ ST Series Brass Coupling, 1/8 in Female Quick Disconnect x 1/8 in MNPTF

  • Manufacturer: Danfoss Power Solutions
  • Brand: Hansen™ and Gromelle™
  • ARGPN: 1S10
  • MPN: 1S10
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Hansen™ and Gromelle™ Coupling, Series: ST, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/8 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/8 in, Thread Size 2: 1/8-27, Hex Size: 0.56 in, 2800 psi, Material Construction: Brass, Dimensions: 1.06 in L, -40 to 250 deg F

Connection Size 1      :      1/8 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.06 in L
Gender 1      :      Female
Gender 2      :      Male
Hex Size      :      0.56 in
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      2800 psi
Series      :      ST
Shape      :      Coupling
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1/8-27
Danfoss's ST Series is a straight through coupling that is designed for use where minimum pressure drop is required and valving is not needed. These couplings are suited for various and versatile fluid transfer type systems. Ball latching mechanism Smooth bore permits free-flow of liquid or gas Buna-N seal material Applications: Fluid transfer, chemical, food and beverage, injection molding, marine, medical, pressure washing, steam cleaning
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Hansen and Gromelle_100006E_CAT.pdf

Complete Your Assembly
