Crosby® 1039691 1039691

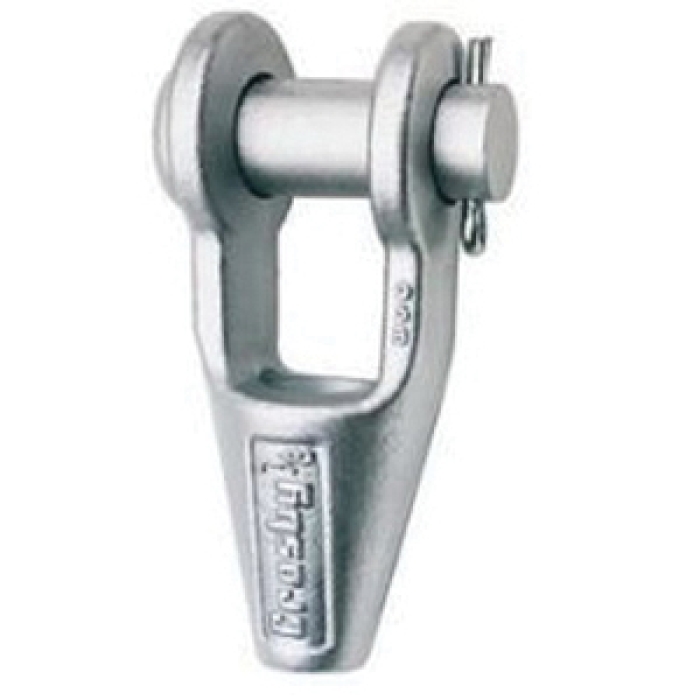

McKissick® G-416 Galvanized Forged Steel Open Spelter Socket

McKissick® G-416 Open Spelter Socket, Galvanized, Forged Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Crosby® Open Spelter Socket, Series: G-416, 3/4 in Cable, 1-1/2 in Eye Inside Diameter, Load Capacity: 43 ton, Material Construction: Forged Steel, Finish: Galvanized, 7.94 in Length, 2.62 in Width, For Use With: 6 x 7, 6 x 19 or 6 x 36, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC Wire Rope

    Cable Size      :      3/4 in
    Eye Inside Diameter      :      1-1/2 in
    Finish      :      Galvanized
    For Use With      :      6 x 7, 6 x 19 or 6 x 36, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC Wire Rope
    Length      :      7.94 in
    Load Capacity      :      43 ton
    Material      :      Steel
    Material Construction      :      Forged Steel
    Product Type      :      Spelter Socket
    Series      :      G-416
    Width      :      2.62 in
    • Spelter socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope
    • Strand constructed with minimal number of wires (1 x 7) requires special consideration that socket basket length be five-times the strand diameter or 50-times the wire diameter, whichever is the greater

    Warranty: 1 Year Limited

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Crosby_1004331_CAT.pdf
    • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/McKissick_1039637_SS.pdf
    • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/McKissick_1039691_II.pdf
