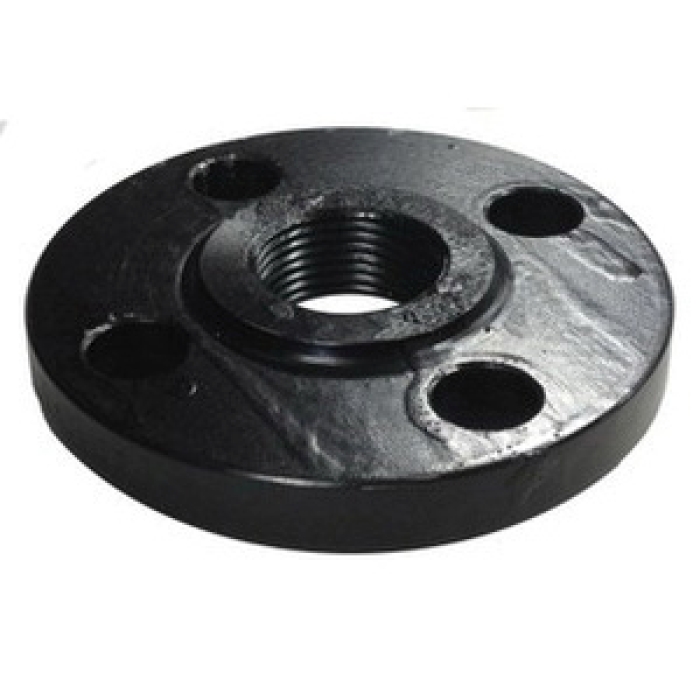

Midland Industries Forged Carbon Steel Raised Face Flange

Midland Industries Raised Face Flange, NPT, Forged Carbon Steel, 150 lb

  • Add to cart
  • MIDLAND INDUSTRIES Raised Face Flange, Flange Fitting, 3 in Connection Size 1, Connection Type 1: Threaded, Threaded Connection, Steel, Material Construction: Forged Steel, 4 Bolt Holes, 5/8 in Bolt Hole Diameter, Pressure Class: 150 lb, Dimension Standards: ANSI B16.5, Additional Information: 1/16 in Raised Face, 8.81 lb Weight

    Additional Information      :      1/16 in Raised Face, 8.81 lb Weight
    Bolt Hole Diameter      :      5/8 in
    Connection Size 1      :      3 in
    Connection Type      :      Threaded
    Connection Type 1      :      Threaded
    Dimension Standards      :      ANSI B16.5
    Fitting Type      :      Flange
    Flange Thickness      :      0.941 in
    Material      :      Steel
    Material Construction      :      Forged Steel
    Number of Bolt Holes      :      4
    Pressure Class      :      150 lb
    Pressure Rating      :      150 lb
    Shape      :      Flange
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland Metals_107064_CAT.pdf
