OPW® 1672AN-SS20 1672AN-SS20

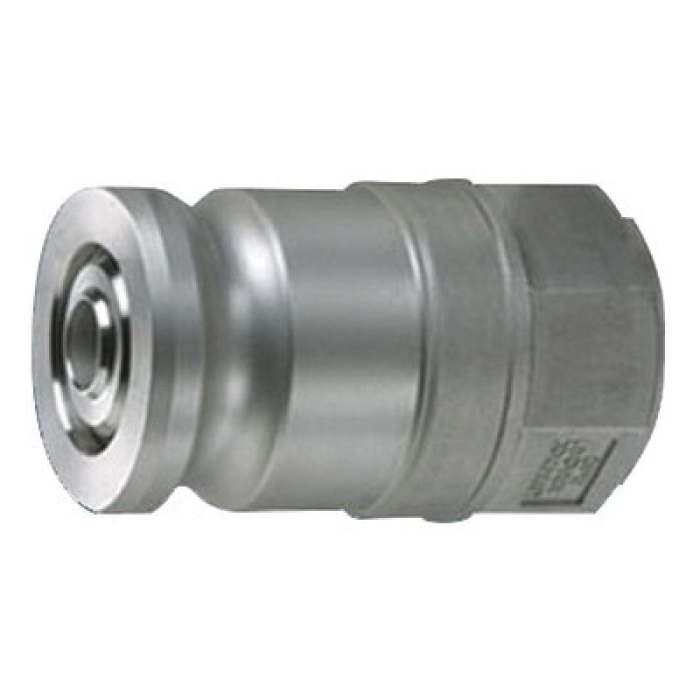

OPW® Midland Kamvalok® 1600AN Stainless Steel Dry Disconnect Adapter with FKM Seal

OPW® Midland Kamvalok® 1600AN Dry Disconnect Adapter with FKM Seal, Fitting X NPT, Stainless Steel

  • ARGPN: 1672AN-SS20 loading
    • Connection Size 1:
    • Connection Size 2:
pin-int

OPW® Midland Kamvalok® Dry Disconnect Adapter with FKM Seal, Series: 1600AN, Connection Type 1: Fitting, Connection Size 1: 2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 2 in, Material Construction: Stainless Steel, Dimensions: 4-15/16 in L

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Dimensions      :      4-15/16 in L
Gender 2      :      Female
Material      :      Stainless Steel
Material Construction      :      Stainless Steel
Series      :      1600AN
Shape      :      Adapter
Sub Brand      :      Midland Kamvalok®

The 1600AN Series adapter is specifically designed to mate with OPW® Kamvalok® couplings to help prevent liquid spillage during the connection/disconnection process. The adapter contains a spring-loaded poppet to assure fast closing and a tight seal.

  • Stainless steel corrosion resistance comparable to 316 stainless steel
  • Female threads can be fitted to either a male pipe end or to a hose fitting
  • Spring-loaded poppet design assures fast closing and a tight seal
  • Eliminates a possible leak path
  • Poppet actuated design can only be opened with a Kamvalok® coupling, designed to provide a tight seal when closed
  • The simple spring-loaded poppet design and heavy-duty construction provide for reliable, long life operation
  • Even flow and low pressure drop are achieved by a built-in deflector that reduces turbulence
  • Fluorocarbon O-ring seal
  • Duplex stainless steel internals
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kamvalok_1611AN-AL15_CAT.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kamvalok_1611AN-AL15_TD.pdf
