Snap-tite BVHN8-8F BVHN8-8F

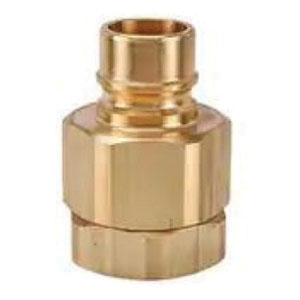

Snap-tite H Series Brass Poppet Valved Multi-Purpose Nipple

Snap-tite H Series Brass Poppet Valved Multi-Purpose Nipple, 1/2 in Quick Disconnect x 1/2 in FNPTF

  • ARGPN: BVHN8-8F loading
  • Add to cart
    Add To Favorites
    • pin-int

    Snap-tite Poppet Valved Multi-Purpose Nipple, Series: H, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1.19 in, 2000 psi, Material Construction: Brass, Dimensions: 1.39 in OD x 1.98 in L, -40 to 250 deg F

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1/2 in
    Connection Size 2      :      1/2 in
    Connection Type 1      :      Quick Disconnect
    Connection Type 2      :      NPTF
    Dimensions      :      1.39 in OD x 1.98 in L
    Gender 2      :      Female
    Hex Size      :      1.19 in
    Material      :      Brass
    Material Construction      :      Brass
    Pressure Rating      :      2000 psi
    Series      :      H
    Shape      :      Nipple
    Temperature Rating      :      -40 to 250 deg F
    Thread Size 2      :      1/2-14

    Snap-tite H Series nipples (hydraulic, fluids) up to 11000 psi connect with Snap-tite H and PH Series couplers. These original Snap-tite H Series quick disconnects are truly multi-purpose. With sizes up to 4 in, this coupling can be valved on both sides, single shut-off or full flow.

    • Standard seal material is nitrile
    • Manually operated sleeve provides secure connection

    Applications: For industrial hydraulic lines, food and chemical processing, water and coolant lines, high pressure fluid transfer, mobile equipment, cleaning equipment

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Snap-tite_BPHC1212F_CAT.pdf
