Snap-tite BPHC8-8F BPHC8-8F

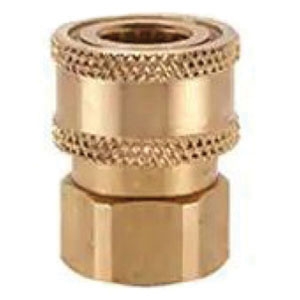

Snap-tite H Series Brass Unvalved Multi-Purpose Coupling

Snap-tite H Series Brass Unvalved Multi-Purpose Coupling, 1/2 in Quick Disconnect x 1/2 in FNPTF

  • ARGPN: BPHC8-8F loading
    • Connection Size 1:
    • Connection Size 2:
pin-int

Snap-tite Unvalved Multi-Purpose Coupling, Series: H, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1.19 in, 2000 psi, Material Construction: Brass, Dimensions: 1.39 in OD x 1.62 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.39 in OD x 1.62 in L
Gender 2      :      Female
Hex Size      :      1.19 in
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      2000 psi
Series      :      H
Shape      :      Coupling
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1/2-14

Snap-tite H Series couplers (hydraulic, fluids) up to 11000 psi connect with Snap-tite H and PH Series nipples. These original Snap-tite H Series quick disconnects are truly multi-purpose. With sizes up to 4 in, this coupling can be valved on both sides, single shut-off or full flow.

  • Standard seal material is nitrile
  • Manually operated sleeve provides secure connection

Applications: For industrial hydraulic lines, food and chemical processing, water and coolant lines, high pressure fluid transfer, mobile equipment, cleaning equipment

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Snap-tite_BPHC1212F_CAT.pdf
