Synflex® 90L04-045400-0 90L04-045400-0

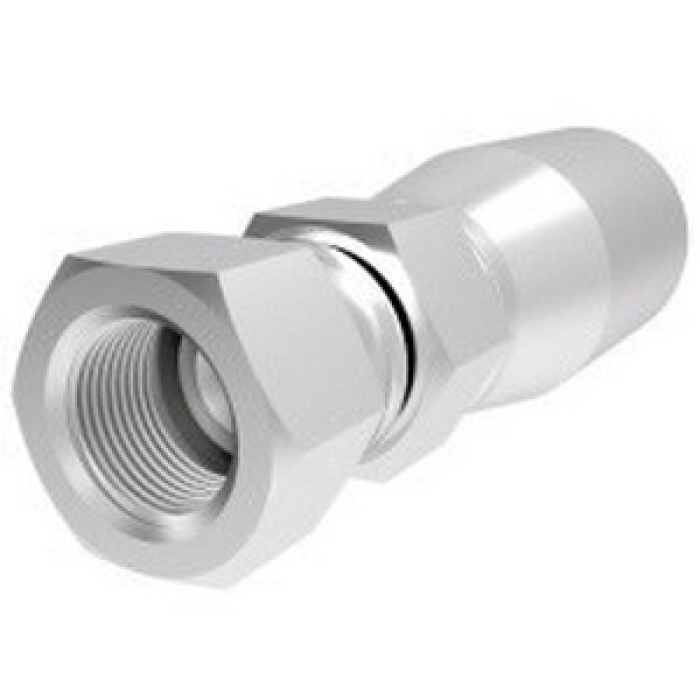

Synflex® 316 Stainless Steel Female SAE 37 deg JIC Swivel High Pressure Permanent Swage Straight Hose Fitting

Synflex® 90L Permanent Swage Straight Hose Fitting, Hose X SAE 37 deg JIC Swivel, 316 Stainless Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Synflex® Permanent Swage Straight Hose Fitting, Series: 90L, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 5/8 x 5/8 in, Cut-Off Factor: 1.44 in, Material Construction: 316 Stainless Steel, For Use With: 3630 (-16), 3R80 (-03 to -16), 3E80 (-03 to -16), 3440 (-12 to -16), 34PW (-12 to -16), and 34BA (-06) Thermoplastic Hoses, Dimensions: 2.53 in L

    Connection Size 1      :      1/4 in
    Connection Size 2      :      1/4 in
    Connection Type      :      Hose~JIC Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      SAE 37 deg JIC Swivel
    Cut-Off Factor      :      1.44 in
    Dimensions      :      2.53 in L
    Fitting Type      :      Straight Hose Fitting
    For Use With      :      3630 (-16), 3R80 (-03 to -16), 3E80 (-03 to -16), 3440 (-12 to -16), 34PW (-12 to -16), and 34BA (-06) Thermoplastic Hoses
    Gender 2      :      Female
    Hex Size      :      5/8 x 5/8 in
    Hose Dash Size      :      04
    Material      :      Stainless Steel
    Material Construction      :      316 Stainless Steel
    Nominal Size      :      1/4 in
    Series      :      90L
    Shape      :      Straight
    Thread Size 2      :      7/16-20
    • Permanently attached, 316 stainless steel, high pressure, OH style
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_90V03-045400-0_CAT.pdf
