Synflex® 90L04-041000-0 90L04-041000-0

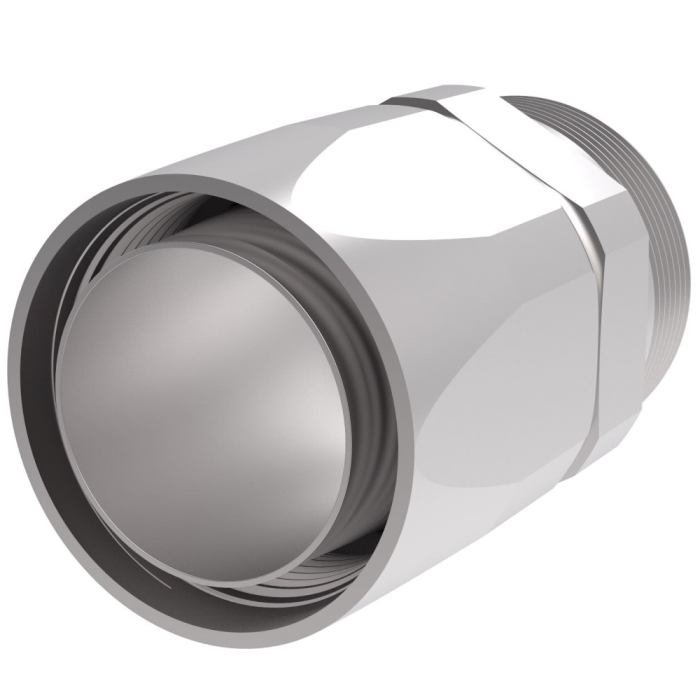

Synflex® 316 Stainless Steel MNPT Permanent Swage Straight Hose Fitting

Synflex® 90L Permanent Swage Straight Hose Fitting, Hose X NPT, 316 Stainless Steel

  • ARGPN: 90L04-041000-0 loading
pin-int

Synflex® Permanent Swage Straight Hose Fitting, Series: 90L, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 11/16 in, Cut-Off Factor: 1-1/4 in, Material Construction: 316 Stainless Steel, For Use With: 3630 (-16), 3R80 (-03 to -16), 3E80 (-03 to -16), 3440 (-12 to -16), 34PW (-12 to -16), and 34BA (-06) Hoses, Dimensions: 2.31 in L

Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type      :      Hose~NPT Male
Connection Type 1      :      Hose
Connection Type 2      :      NPT
Cut-Off Factor      :      1-1/4 in
Dimensions      :      2.31 in L
Fitting Type      :      Straight Hose Fitting
For Use With      :      3630 (-16), 3R80 (-03 to -16), 3E80 (-03 to -16), 3440 (-12 to -16), 34PW (-12 to -16), and 34BA (-06) Hoses
Gender 2      :      Male
Hex Size      :      11/16 in
Hose Dash Size      :      04
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Nominal Size      :      1/4 in
Series      :      90L
Shape      :      Straight
Thread Size 2      :      1/4-18
  • Permanently attached, 316 stainless steel, high pressure, OH style
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_90304-045540-0_CAT.pdf
