Weatherhead® by Danfoss H36606 H36606

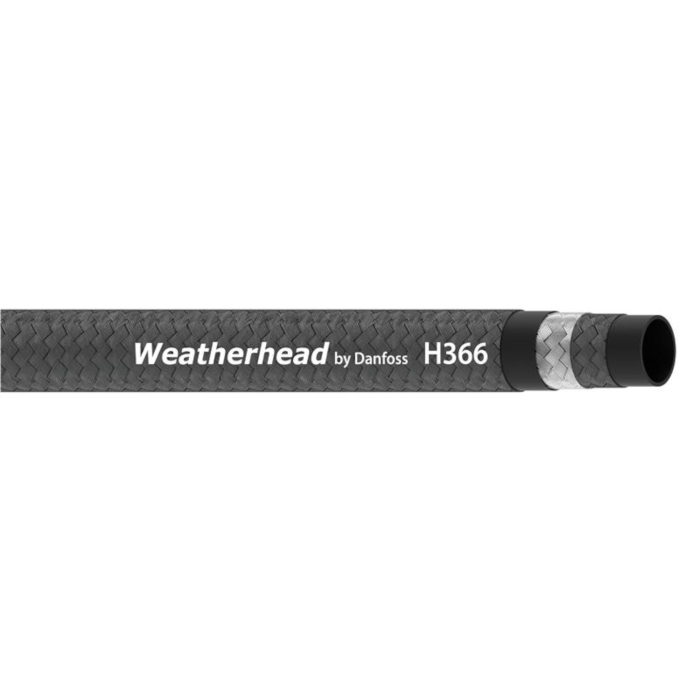

Weatherhead® by Danfoss H366 Hydraulic LPG Hose

Weatherhead® by Danfoss Hydraulic LPG Hose Series H366 is designed for medium-pressure LP gas service, meeting UL requirements for safety and reliability. Constructed with 1-fiber braid and 1-stainless steel braid reinforcement, it features a durable polyester braid cover for excellent abrasion resistance. With a pressure rating of 350 psi and an extended temperature range from -40°F to 300°F, this hose is suitable for demanding LP gas applications.

pin-int

Weatherhead® Hydraulic LPG Hose, Series: H366, Dash Size: 06, 0.67 in OD, 0.31 in ID, 0.18 in Thick Wall, 50 ft Length, 350 psi, Polyester Braid Cover, Construction: 1-Fiber Braids and 1-Stainless Steel Braid, Black, 4 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 300 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      4 in
Color      :      Black
Construction      :      1-Fiber Braids and 1-Stainless Steel Braid
Cover Material      :      Polyester Braid
Dash Size      :      06
Inside Diameter      :      0.31 in
Length      :      50 ft
Outside Diameter      :      0.67 in
Pressure Rating      :      350 psi
Product Type      :      LPG Hose
Resistance Properties      :      Abrasion
Series      :      H366
Temperature High      :      300 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.18 in

Applications: For medium-pressure LP gas service, UL listed for LP gas applications

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_H16906_CAT.pdf
