Weatherhead® by Danfoss H14512-250R H14512-250R

Weatherhead® by Danfoss H14512-250R

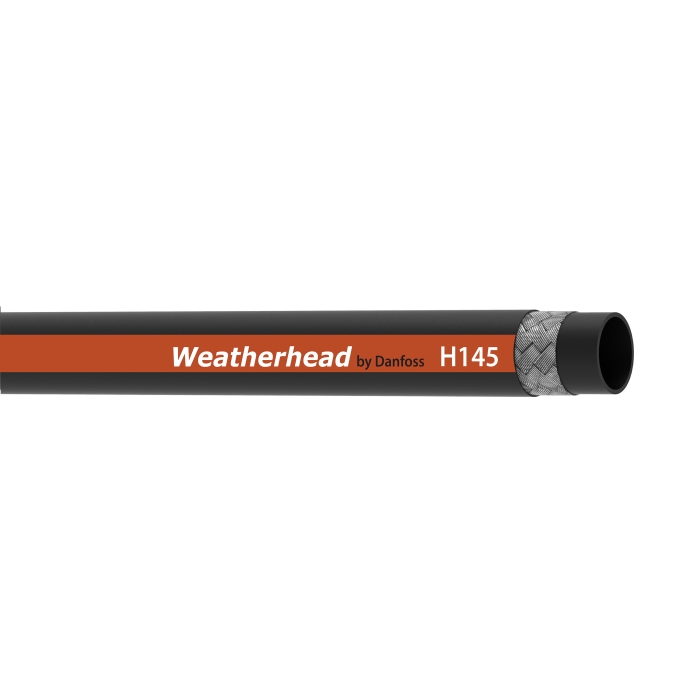

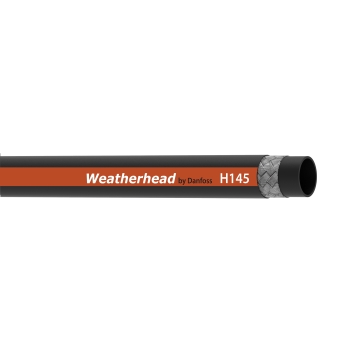

Weatherhead® H145 Black Nitrile Braided Hydraulic Hose, 3/4 in, 1 ft L, 3045 psi

  • Manufacturer: Danfoss
  • Brand: Weatherhead® by Danfoss
  • ARGPN: H14512-250R
  • MPN: H14512-250R
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Weatherhead® Braided Hydraulic Hose, Series: H145, Nominal Size: 3/4 in, Dash Size: 12, 1.16 in OD, 3/4 in ID, 0.203 in Thick Wall, 21 ft Length, 3045 psi, SAE Rating: SAE J1942/1, Material Construction: Nitrile, Neoprene Cover, Construction: 2-Ply Wire Braid, Black, 4-3/4 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 250 deg F High

Bend Radius      :      4-3/4 in
Color      :      Black
Construction      :      2-Ply Wire Braid
Cover Material      :      Neoprene
Dash Size      :      12
Inside Diameter      :      3/4 in
Length      :      250 ft
Material      :      Nitrile
Material Construction      :      Nitrile
Nominal Size      :      3/4 in
Outside Diameter      :      1.16 in
Pressure Rating      :      3045 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Abrasion
SAE Rating      :      SAE J1942/1
Series      :      H145
Temperature High      :      250 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.203 in

Applications: For use in high pressure lines on off-road construction equipment, farm equipment

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_H14504-250R_CAT.pdf
