ZSI-Foster K2B-101 FOS K2B-101

ZSI-Foster K2B-101

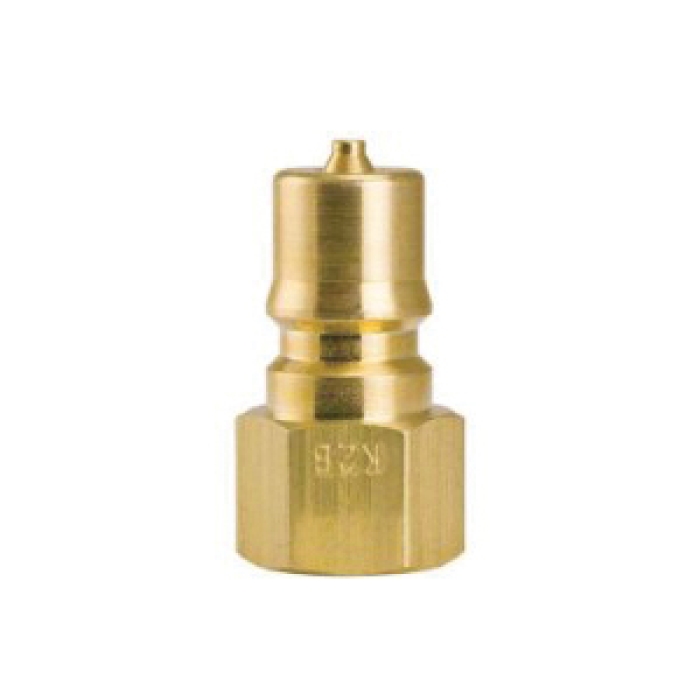

ZSI-Foster FHK Brass Coupling with 2-Way Valve, 1/4 in Male Quick Disconnect x 1/4 in FNPT

  • Manufacturer: ZSI-Foster
  • Brand: ZSI-Foster
  • ARGPN: FOS K2B-101
  • MPN: K2B-101
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for ZSI-Foster factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

ZSI-Foster Coupling with 2-Way Valve, Series: FHK, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, 2700 psi, Material Construction: Brass

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPT
Gender 1      :      Male
Gender 2      :      Female
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      2700 psi
Series      :      FHK
Shape      :      Coupling
Thread Size 2      :      1/4-18
  • ISO B hardened plugs and sleeves constructed from solid bar stock ensures long service life and maximum resistance to damage from hydraulic and mechanical shock
  • High flow capacity
  • Foster® conical valve with its 360 deg metal-to-metal valve stop maintains valve alignment and ensures that poppets open fully every time
  • Captive valve seal ensures “bubble tight” poppet sealing since seal is positively captured by the metal poppet to minimize seal washout or damage from high fluid viscosity
  • Ball locking mechanism ensures reliable connections every time
  • Many ball bearings distribute the load while providing alignment and excellent swiveling action to reduce hose torque and prolong hose life
  • Broad range of metals and seal materials allow the use of PRVW AXLGV
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/ZSI-Foster_2402_CAT.pdf
