Aeroquip® by Danfoss GH793-04 GH793-04

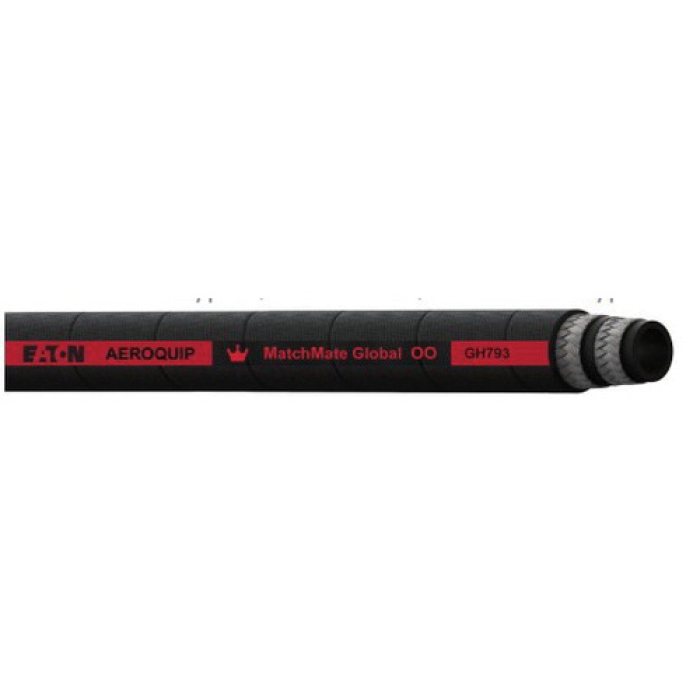

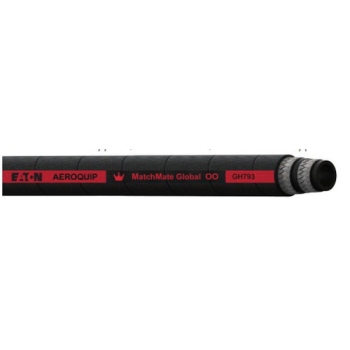

Aeroquip® by Danfoss GH793 Synthetic Rubber 2-Wire Braided Hose

Aeroquip® by Danfoss GH793 2-Wire Braided Hose, Black, Synthetic Rubber, SAE 100R2AT

pin-int

Aeroquip® by Danfoss 2-Wire Braided Hose, Series: GH793, Nominal Size: 1/4 in, Dash Size: 04, 0.6 in OD, 1/4 in ID, 0.83 in Thick Wall, 1 ft Length, 5000 psi, SAE Rating: SAE 100R2AT, Material Construction: Synthetic Rubber, PVC/Nitrile Blend Cover, Construction: 2-Wire Braided, Black, 3.94 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 260 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      3.94 in
Color      :      Black
Construction      :      2-Wire Braided
Cover Material      :      PVC/Nitrile Blend
Dash Size      :      04
Inside Diameter      :      1/4 in
Length      :      1 ft
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1/4 in
Outside Diameter      :      0.6 in
Pressure Rating      :      5000 psi
Product Type      :      Braided Hose
Resistance Properties      :      Abrasion
SAE Rating      :      SAE 100R2AT
Series      :      GH793
Temperature High      :      260 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.83 in
Dura-Tuff™ cover provides much higher abrasion-resistant leading to longer hose life Danfoss's MatchMate™ program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly Applications: For hydraulic system service with petroleum and water-based fluids, general industrial service
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_GH793-20_CAT.pdf
