Aeroquip® GH781-12R250 GH781-12R250

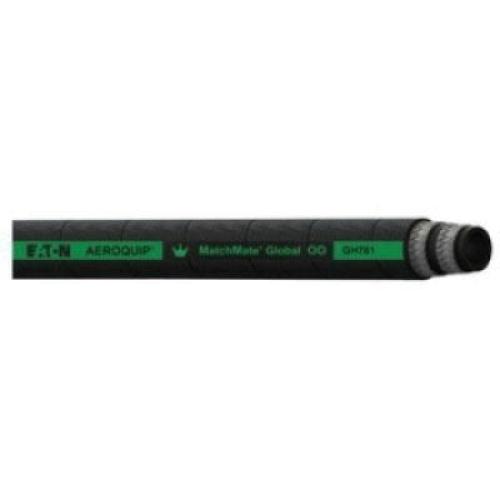

Aeroquip® MatchMate® Global GH781 Nitrile Braided Hydraulic Hose

The Aeroquip® MatchMate® Global Braided Hydraulic Hose, Series GH781, is engineered for high-pressure hydraulic systems utilizing petroleum and water-glycol-based fluids, as well as lubricating oils and water. This hose features a nitrile tube and a durable PVC/nitrile blend cover, reinforced with two-ply braided wire, ensuring robust performance under demanding conditions. Its Dura-Tuff™ cover significantly enhances abrasion resistance, extending the hose's lifespan. The hose is designed for a working pressure of up to 6,500 psi and operates effectively within a temperature range of -50.8°F to 258.8°F. Additionally, Eaton's MatchMate™ program provides identification markings on the hose, fittings, and crimp dies, facilitating quick and accurate assembly.

  • ARGPN: GH781-12R250 loading
    • Nominal Size:
    • Dash Size:
    • Inside Diameter:
  • Add to cart
    Add To Favorites
    • pin-int

    Aeroquip® by Danfoss 2-Wire Braided Hose, Series: GH120 Series, Hose Type: Braided Hose, 10 Dash Size, 0.62 in Inside Dia, 1 in Outside Dia, 250 ft Length, Rubber Cover, 2-Ply Braid Reinforcement, Black Hose Color, 4 in Bend Radius, 4000 psi, Abrasion Resistance Properties, 212 deg F Temperature High, -70 deg F Temperature Low

    Attribute Type Configurator      :      Parent
    Bend Radius      :      4.72 in
    Color      :      Black
    Construction      :      2-Ply Braided Wire
    Cover Material      :      Nitrile/PVC
    Dash Size      :      12
    Hose Type      :      Braided Hose
    Inside Diameter      :      3/4 in
    Length      :      1 ft
    Material      :      Nitrile
    Material Construction      :      Nitrile
    Nominal Size      :      3/4 in
    Outside Diameter      :      1.13 in
    Pressure Rating      :      3485 psi
    Product Type      :      Hydraulic Hose
    Reinforcement      :      2-Ply Braid
    Reinforcement      :      Black
    Resistance Properties      :      Abrasion
    SAE Rating      :      SAE 100R16/EN 857 2SC
    Series      :      GH781 Series
    Sub Brand      :      MatchMate® Global
    Temperature High      :      258.8 deg F
    Temperature Low      :      -50.8 deg F
    Tube Material      :      Nitrile
    Wall Thickness      :      0.37 in
    Dura-Tuff™ cover provides much higher abrasion-resistant leading to longer hose life Eaton's MatchMate™ program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_GH78112R250_CAT.pdf
