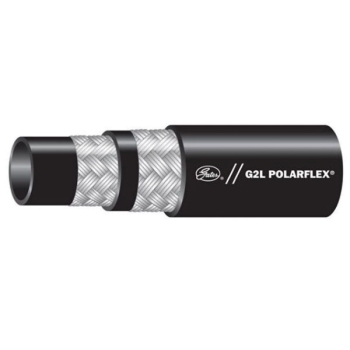

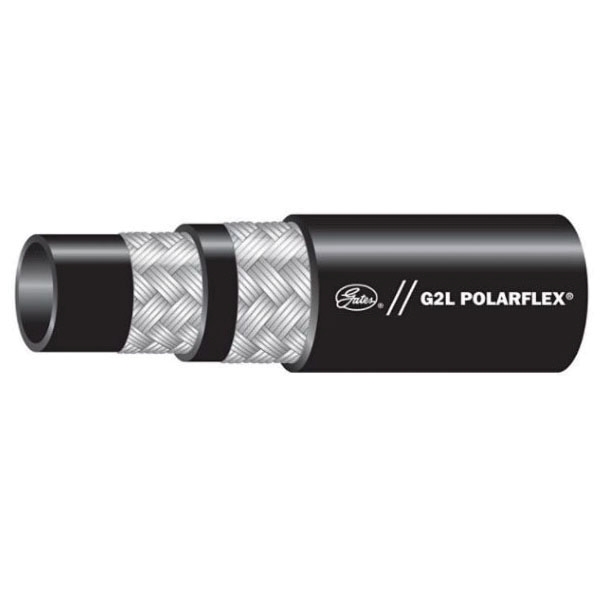

Gates® 4657-2205 10G2L

Gates® 4657-2205

Gates® PolarFlex® G2L Black Synthetic Rubber Hydraulic Braided Hose, 5/8 in, 3625 psi

pin-int

Gates® PolarFlex® Hydraulic Braided Hose, Series: G2L, Nominal Size: 5/8 in, Dash Size: 10, 0.99 in OD, 5/8 in ID, 3625 psi, SAE Rating: SAE 100R2AT, Material Construction: Synthetic Rubber, Synthetic Rubber Cover, Construction: 2-Braided High-Tensile Steel Wire, Black, 8 in Bend Radius, Resistance Properties: Abrasion, Oil, -70 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      8 in
Color      :      Black
Construction      :      2-Braided High-Tensile Steel Wire
Cover Material      :      Synthetic Rubber
Dash Size      :      10
Inside Diameter      :      5/8 in
Material      :      NBR
Material Construction      :      Synthetic Rubber
Nominal Size      :      5/8 in
Outside Diameter      :      0.99 in
Pressure Rating      :      3625 psi
Product Type      :      Braided Hose
Resistance Properties      :      Abrasion, Oil
SAE Rating      :      SAE 100R2AT
Series      :      G2L
Sub Brand      :      PolarFlex®
Temperature High      :      212 deg F
Temperature Low      :      -70 deg F
  • G2L hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance tested to 600,000 impulse cycles, 3X the industry standard
  • Meets flame-resistant acceptance designation MSHA 2G
  • Unique low temperature tube for extended service life at extremely low temperatures
  • -4 to -20 validated with MegaCrimp®, -24 to -32 with GlobalSpiral™ Plus

Applications: For extremely low temperature high pressure hydraulic oil lines
