Gates® 4657-0225 10M2T-MTF

Gates® 4657-0225

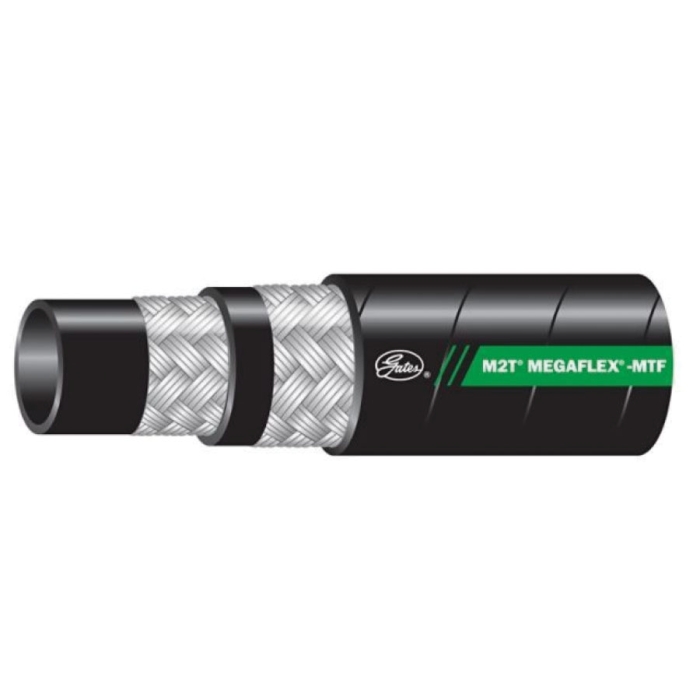

Gates® Megaflex® M2T-MTF Black Synthetic Rubber Hydraulic Braided Hose, 5/8 in, 3800 psi

pin-int

Gates® Megaflex® Hydraulic Braided Hose, Series: M2T-MTF, Nominal Size: 5/8 in, Dash Size: 10, 0.95 in OD, 5/8 in ID, 3800 psi, SAE Rating: SAE 100R16, Material Construction: Synthetic Rubber, MegaTuff® UHMWPE Cover, Construction: 2-Braided High-Tensile Steel Wire, Black, 3 in Bend Radius, Resistance Properties: Abrasion, Oil, Weather, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      3 in
Color      :      Black
Construction      :      2-Braided High-Tensile Steel Wire
Cover Material      :      MegaTuff® UHMWPE
Dash Size      :      10
Inside Diameter      :      5/8 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      5/8 in
Outside Diameter      :      0.95 in
Pressure Rating      :      3800 psi
Product Type      :      Braided Hose
Resistance Properties      :      Abrasion, Oil, Weather
SAE Rating      :      SAE 100R16
Series      :      M2T-MTF
Sub Brand      :      Megaflex®
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F
  • Easy to route and to install in tight areas
  • Superior flex impulse performance tested to 600,000 impulse cycles at 50% of EN 857 2SC bend radii
  • CM2T hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • With the Gates special MegaTuff® cover which offers 300 times the abrasion-resistant of the standard CM2T cover as per ISO 6945, superior ozone and weather-resistant
  • M2T® hose has smaller exterior dimensions and significantly tighter bend radius than competitive R16 hoses
  • Meets flame-resistant acceptance designation MSHA 2G
  • 70% of EN 857 2SC bend radius at rated working pressure
  • Validated with MegaCrimp®
  • Black, oil, abrasion and weather-resistant MegaTuff® with color-coded lay line cover

Applications: For high pressure hydraulic oil lines
