Gates® 4657-1458 6M4K

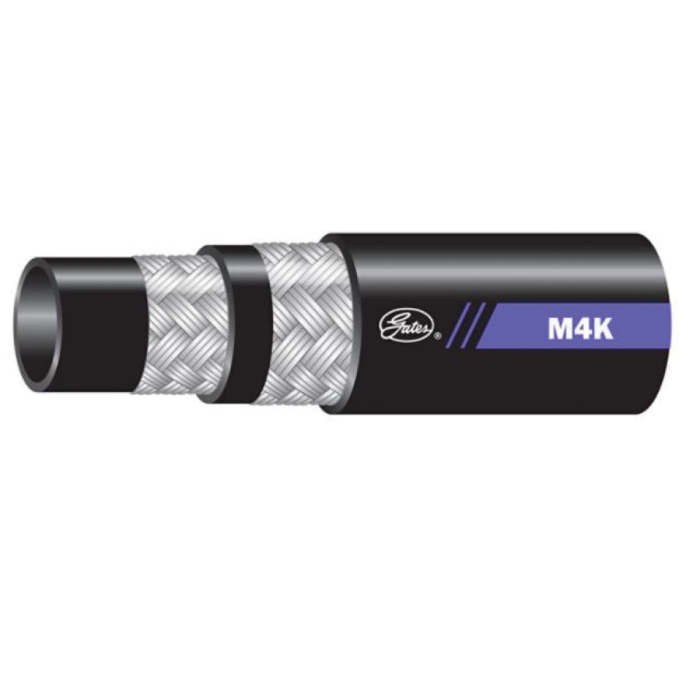

Gates® Mega4000™ M4K Black Synthetic Rubber Hydraulic Braided Hose

Gates® Mega4000™ M4K Black Synthetic Rubber Hydraulic Braided Hose, 3/8 in, 4000 psi

pin-int

Gates® Mega4000™ Hydraulic Braided Hose, Series: M4K, Nominal Size: 3/8 in, Dash Size: 06, 0.7 in OD, 3/8 in ID, 4000 psi, SAE Rating: SAE 100R19, Material Construction: Synthetic Rubber, Type C Nitrile Cover, Construction: 2-Braided High-Tensile Steel Wire, Black, 2 in Bend Radius, Resistance Properties: Abrasion, Oil, Weather, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      2 in
Color      :      Black
Construction      :      2-Braided High-Tensile Steel Wire
Cover Material      :      Type C Nitrile
Dash Size      :      06
Inside Diameter      :      3/8 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      3/8 in
Outside Diameter      :      0.7 in
Pressure Rating      :      4000 psi
Product Type      :      Braided Hose
Resistance Properties      :      Abrasion, Oil, Weather
SAE Rating      :      SAE 100R19
Series      :      M4K
Sub Brand      :      Mega4000™
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F
  • Easy to route and to install in extremely tight areas
  • M4K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance tested to 600,000 impulse cycles, 3X the industry standard
  • Meets flame-resistant acceptance designation MSHA 2G
  • Provides greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms
  • 50% of EN 857 2SC and 40% of EN 853 2SN bend radius at rated working pressure
  • Alternative to spiral hoses in high-pressure lines where flexibility is required
  • Validated with MegaCrimp®
  • Black, oil, abrasion and weather-resistant, synthetic rubber (modified nitrile - Type C2) with color-coded lay line cover

Applications: For high pressure hydraulic oil lines

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_36581779_CAT.pdf

Complete Your Assembly
