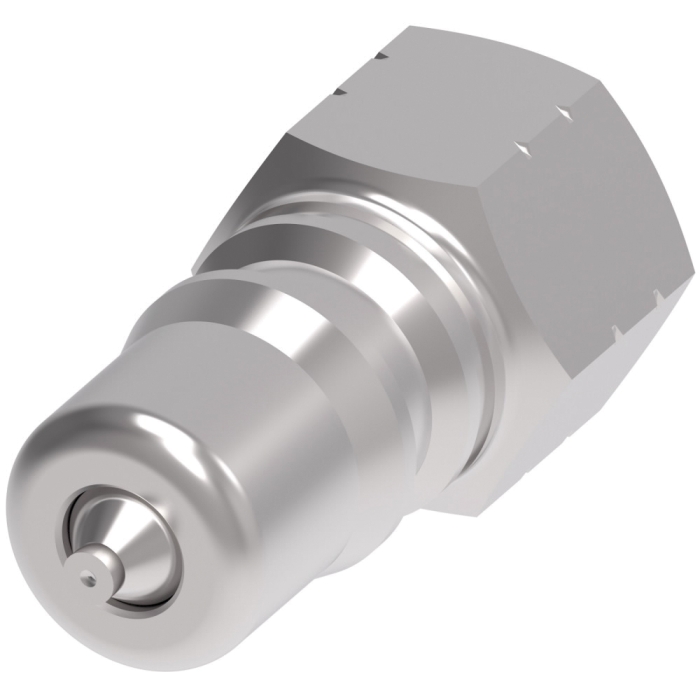

Hansen™ and Gromelle™ 5610-12-12S

Hansen™ and Gromelle™ 5600 Zinc Trivalent-Plated Carbon Steel Coupling Plug, 3/4 in Male Quick Disconnect x 3/4 in Female SAE ORB

Manufacturer: Danfoss Power Solutions
Brand: Hansen™ and Gromelle™
ARGPN: 5610-12-12S

MPN: 5610-12-12S

Available for Pickup - Anchorage, AK Branch: Click here
Available for Shipping:
Available for Danfoss Power Solutions factory-direct delivery:
Add to cart
Add To Favorites

Description
Specs
Features
Documents

Hansen™ and Gromelle™ Coupling Plug, Series: 5600, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 3/4 in, Connection Type 2: SAE ORB, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 1-1/16-12, Hex Size: 1.38 in, 4000 psi, Material Construction: Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 2.55 in L, Dimension Standards: ISO 7241-1 Series A, -40 to 250 deg F, For Use With: 5600 Series ISO 7241-1 A Interchange Couplers

Connection Size 1	:	3/4 in
Connection Size 2	:	3/4 in
Connection Type 1	:	Quick Disconnect
Connection Type 2	:	SAE ORB
Dimension Standards	:	ISO 7241-1 Series A
Dimensions	:	2.55 in L
Finish	:	Zinc Trivalent-Plated
For Use With	:	5600 Series ISO 7241-1 A Interchange Couplers
Gender 1	:	Male
Gender 2	:	Female
Hex Size	:	1.38 in
Material	:	Steel
Material Construction	:	Carbon Steel
Pressure Rating	:	4000 psi
Series	:	5600
Shape	:	Plug
Temperature Rating	:	-40 to 250 deg F
Thread Size 2	:	1-1/16-12

Eaton's 5600 Series features a rugged ball latch mechanism with self-sealing poppet valves in a wide array of port configurations and multiple valved and non-valved configurations.

Self sealing poppet valve design provides excellent high and low pressure sealing
Streamlined valving provides minimum pressure drop
Buna-N seal material

Applications: For agricultural equipment, construction equipment, dump, hydraulic fluid transfer, in-plant manufacturing, snow plow and maintenance vehicles
