Hansen™ and Gromelle™ 5602-16-16S 5602-16-16S

Hansen™ and Gromelle™ 5602-16-16S

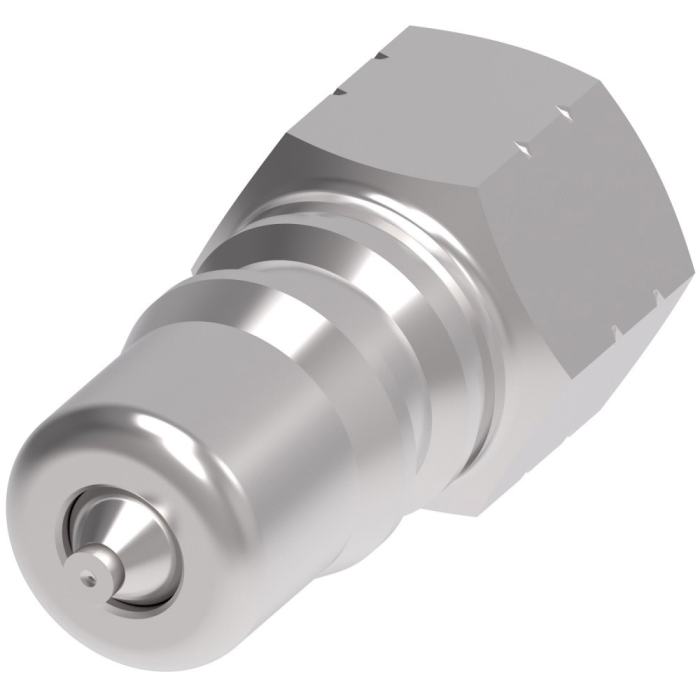

Hansen™ and Gromelle™ 5600 Zinc Trivalent-Plated Carbon Steel Straight Ball Lock Coupling with 2-Way Valve, 1 in Male Quick Disconnect x 1 in FNPTF

  • Manufacturer: Danfoss Power Solutions
  • Brand: Hansen™ and Gromelle™
  • ARGPN: 5602-16-16S
  • MPN: 5602-16-16S
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Hansen™ and Gromelle™ Straight Ball Lock Coupling with 2-Way Valve, Series: 5600, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1.38 in, 4000 psi, Material Construction: Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 3.1 in L x 1.61 in W x 1.61 in H, Dimension Standards: ISO 7241-1 Series A, SAE J2064 Type E Class 1, -40 to 250 deg F

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimension Standards      :      ISO 7241-1 Series A, SAE J2064 Type E Class 1
Dimensions      :      3.1 in L x 1.61 in W x 1.61 in H
Finish      :      Zinc Trivalent-Plated
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      1.38 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      4000 psi
Series      :      5600
Shape      :      Coupling
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1-11-1/2
Featuring the latest design innovations, Danfoss quick disconnect couplings maximize ease-of use and system uptime in key hydraulic and pneumatic applications. Offered in carbon and stainless steel, brass and plastic, Danfoss quick disconnect couplings meets or exceeds industry standards. Couplings provide a means of quickly connecting and disconnecting a line without a loss of fluid or entrance of air into a system If equipment needs to be assembled quickly or if it needs routine servicing or repair, then a coupling is a better choice for a fluid connection When incorporating quick-disconnect couplings, spillage of costly and dangerous liquids and other fluids can also be prevented, this contributes to a cleaner environment, making way for safer working conditions Safety lock prevents accidental disconnection Knurling improves grip for easy disconnection Increased resistance to indentation Improved corrosion protection-guardian seal plating Improved flow path Can rotate while connected, taking stress out of hose and extending life Ease of assembly in tight spaces Easy and fast to use (without tool), time saving and economical Increased mobility and access for maintenance Applications: Hydraulic fluid transfer, agricultural equipment, construction equipment, dump, snow plow and maintenance vehicles and in-plant manufacturing
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Hansen and Gromelle_FD90-1012-02-04_CAT.pdf
